Modular valve AIR DIN 232 bars M25x2

Mono valve 232bars M25x2

Caracteristics :

• For tank : mono or twin
• Output : DIN 5/8
• Max pressure usage : 232bars
• Gaz : Air only
• Tnak thread : M25x2
• Sold with : DIN insert with rubber handle.
• Handle side : Left or right

The modular valve for scuba tank allows many usages. On a single tank, you can add a second outlet on right or left. It is also possible to realize a second assembly for twin-tanks by adding a bridge or bridge with valve (also sold on our website).

This valve is compatible for the following assemblies

• Bridge for bi 2x5/7 liter
• Bridge for bi 2x10 liter
• Bridge for bi 2x15 liter
• Bridge with knob 2x10 liter
• Bridge with knob 2x15 liter

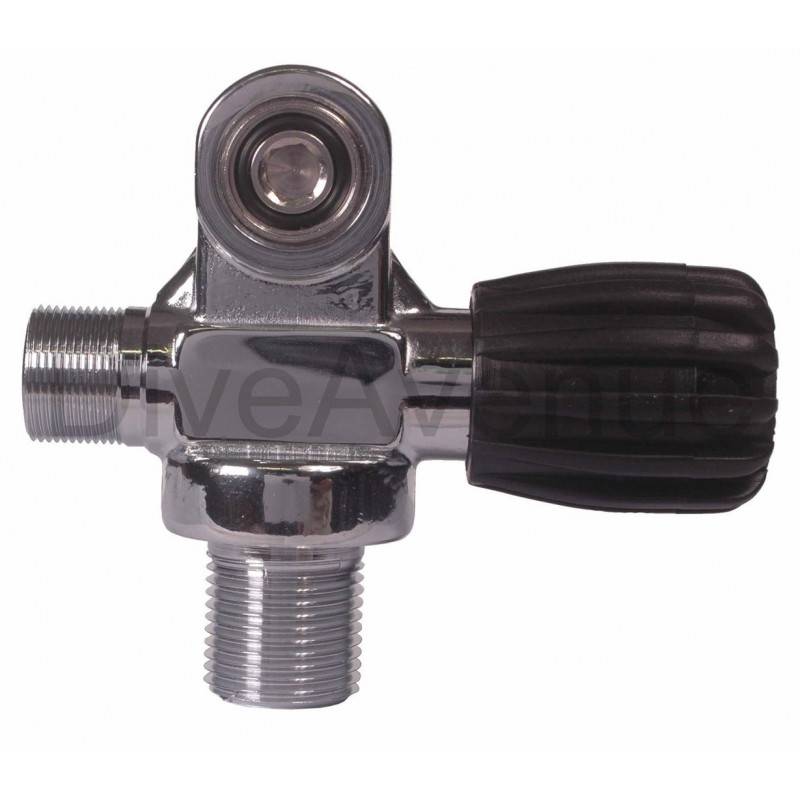

The side outlet can be ordered on the right or left side to be confirmed when ordered. You have to imagine to see the valve by the back and see if the outlet is on the right or left. As example, the picture represents a "right" version.

Our valves are made by stamped brass. They are then machined and chrome plated. Those valve are made in European union. They are CE EN250 certified.

DIVEAVENUE is also taking in charge the valve maintenance. We are offering all the spare parts. Please contact us before ordering spare parts to detail your valve reference.
