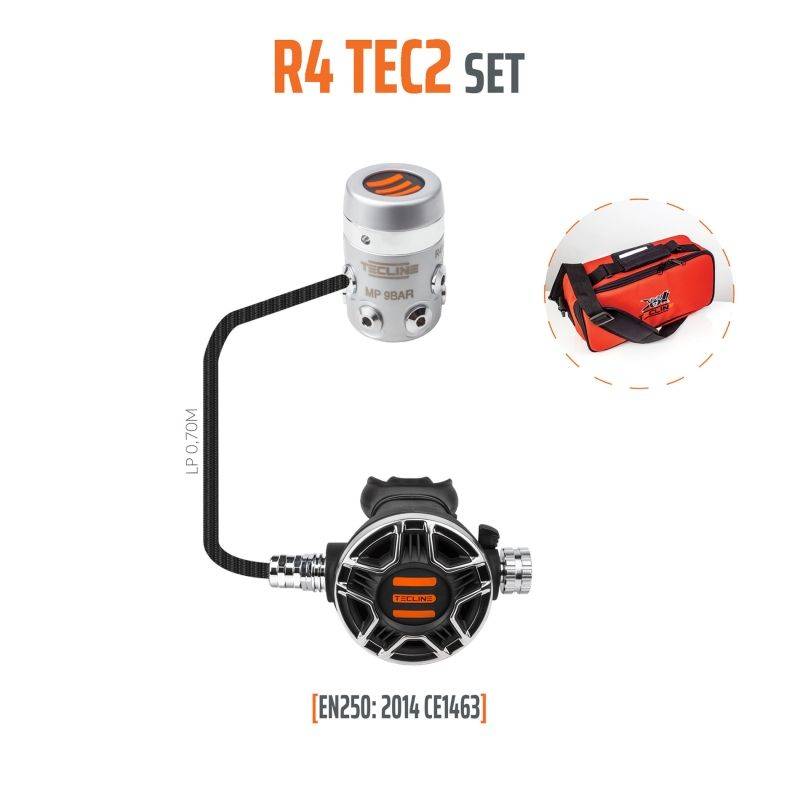

Diving regulator R4-TEC2 - TECLINE

Regulator R4-TEC2 - TECLINE

1st stage compensated diaphragm expansion valve and cold water kit

1st stage :

• Output: 4 MP, 2 HP
• maximum working pressure of 300 bar
• maximum flow at 20 MPa: 3823 l / min
• intermediate pressure 8,5 bar
• Weight 730 g

Second stage :

• Venturi and hardness adjustment
• Second stage not compensated
• maximum flow at 20 MPa: 850 l / min
• Weight 180 g
• complete hose MP 75cm, black
• meets the requirements of the EN 250 standard;


Available options :

• With octopus: addition of a second stage Tecline R1 and a yellow Miflex 100cm
• With manometer: addition of a tempered glass manometer, and a HiHp carbon miflex 75cm
• Or the two options above combined
