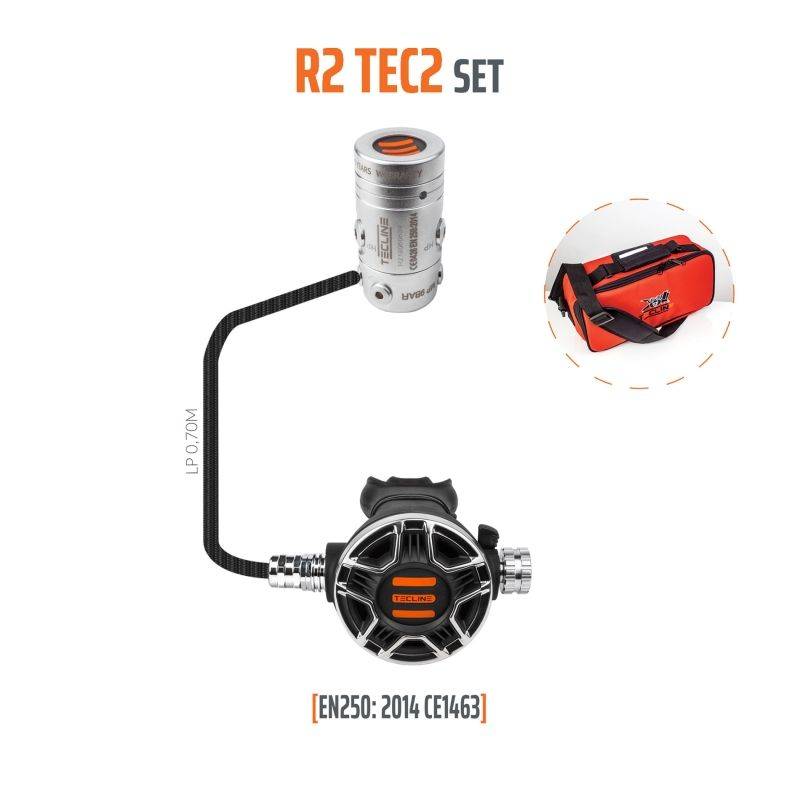

Regulator R2 TEC2 - TECLINE

Regulator R2 TEC2 - TECLINE

Compensated Diaphragm Regulator with Turret and Cold Water Kit
A complete, high-performance regulator to start equipping yourself.

1st stage R2 TEC

• Output: 4 MP, 2 HP
• On turret
• A fifth MP outlet can be mounted on the turret for SideMount or enhanced routing.
• maximum working pressure of 300 bar
• maximum flow at 20 MPa: 3823 l / min
• intermediate pressure 8,5 bar
• weight 730 g
• Valve connection in DIN 5/8G

Second stage TEC2

• Venturi and hardness adjustment
• Compensated second stage.
• maximum flow rate at 20 MPa: 850 l / min
• Weight 180 g
• complete hose MP 75cm
• meets the requirements of the EN 250 standard;


Available options :

• With octopus: addition of a second stage Tecline R1 and a yellow Miflex 100cm
• With manometer: addition of a tempered glass manometer, and a HiHp carbon miflex 75cm
• Or the two options above combined
