R5-TEC2 DIR regulator + MANO SET TECLINE
Top-of-the-range regulator pack, specially designed for twin-bottle diving using the DIR configuration. Thanks to its unique design, the R5 first stage offers optimum orientation of the HP and BP ports, guaranteeing impeccable hose routing.

Technical specifications

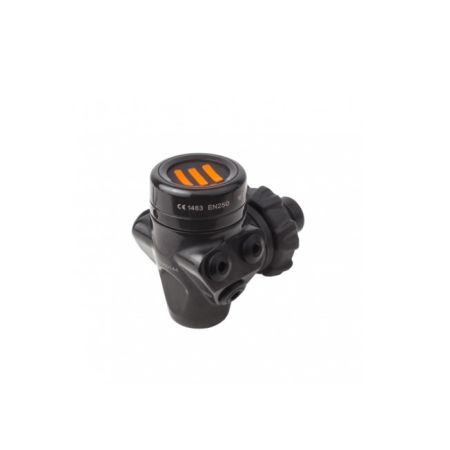

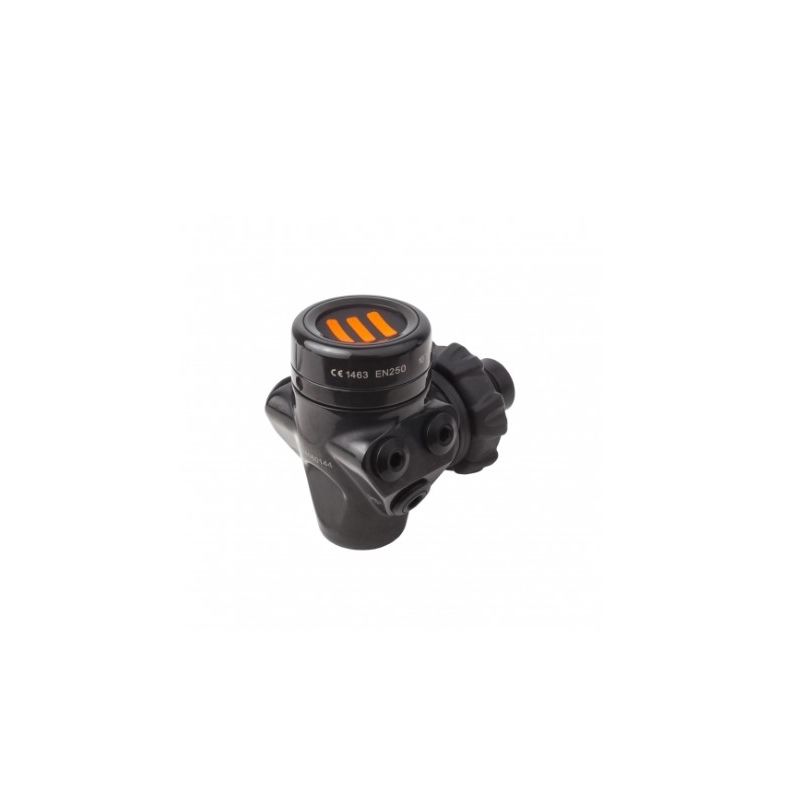

First stage R5

• Type: Compensated diaphragm pressure reducer.
• 2 HP (high pressure) ports.
• 4 LP ports (low pressure).
• Dry chamber: protection against ice and impurities.
• Max. operating pressure: 300 bar.
• Max flow at 20 MPa: 3823 l/min.
• Weight: 720 g.
• Nitrox compatibility: up to 40% O2.
• Certification: CE 1463 EN 250.

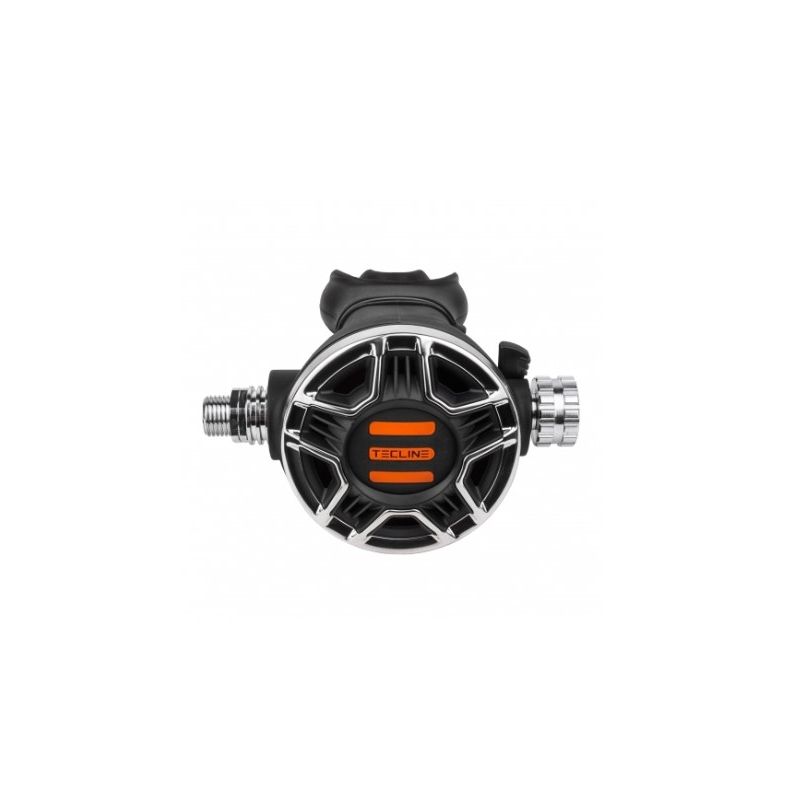

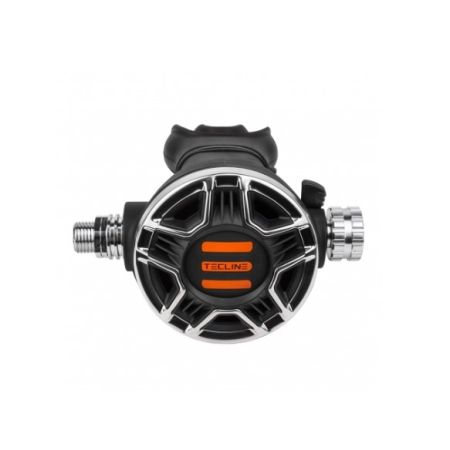

TEC2 second stage

• Type: compensated regulator with advanced settings.
• Venturi adjustment: to optimize air flow.
• Breathing resistance adjustment
• DFS technology: direct-flow system for high flow rates (850 l/min at 20 MPa).
• Body made of materials resistant to temperature variations.
• Stainless steel outer ring.
• Teflon coating to prevent freezing.
• Integrated heat exchanger for use in cold water.
• Ergonomic design: comfortable, adaptable mouthpiece.
• Weight: 260 g.
• Nitrox compatibility: up to 40% O2.

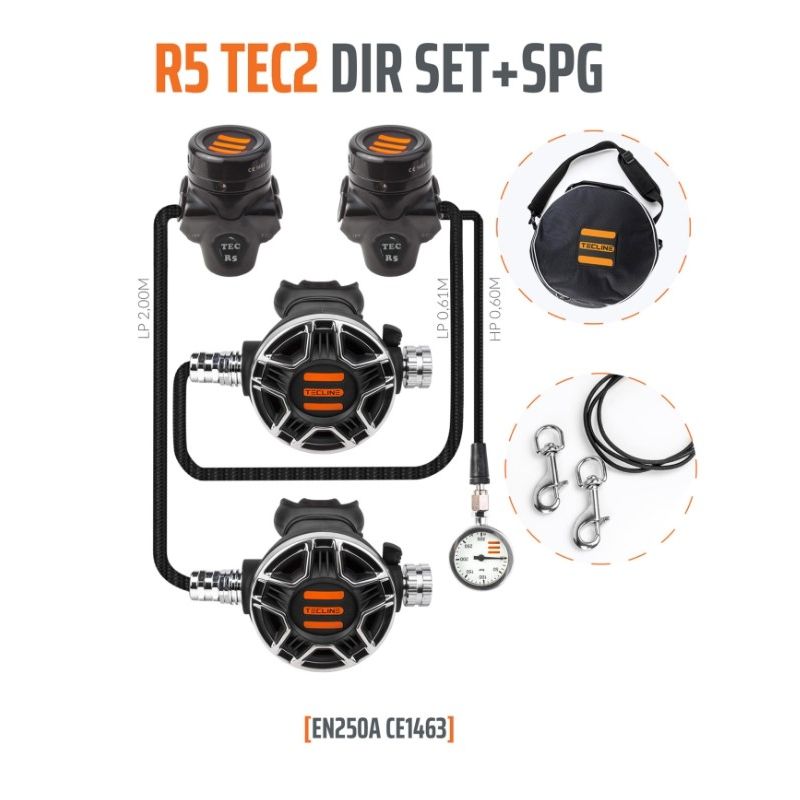

Pack composition

• 2x First stage R5
• 2x Second stage TEC2
• 1 x 2 m MP hose (long hose)
• 1 x 60 cm MMP hose
• 1Mano
• 1 carry bag included
