COLTRI Mini Compact 100 SH compressor

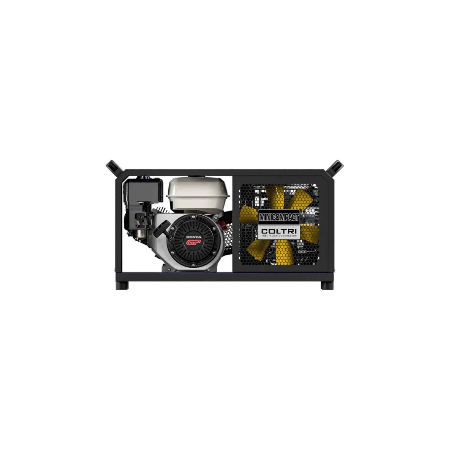

COLTRI Mini Compact 100 SH

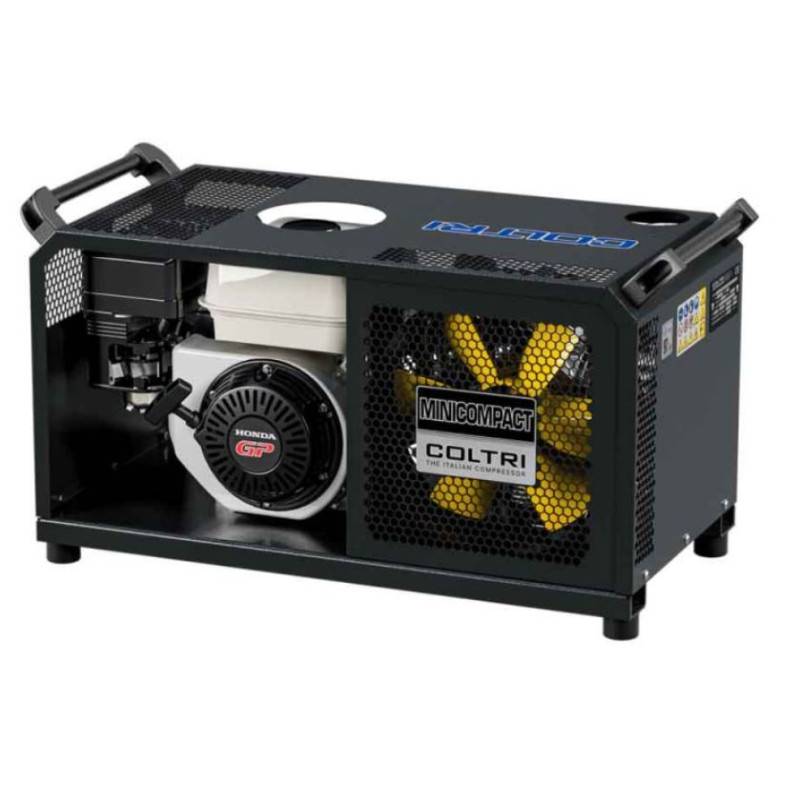

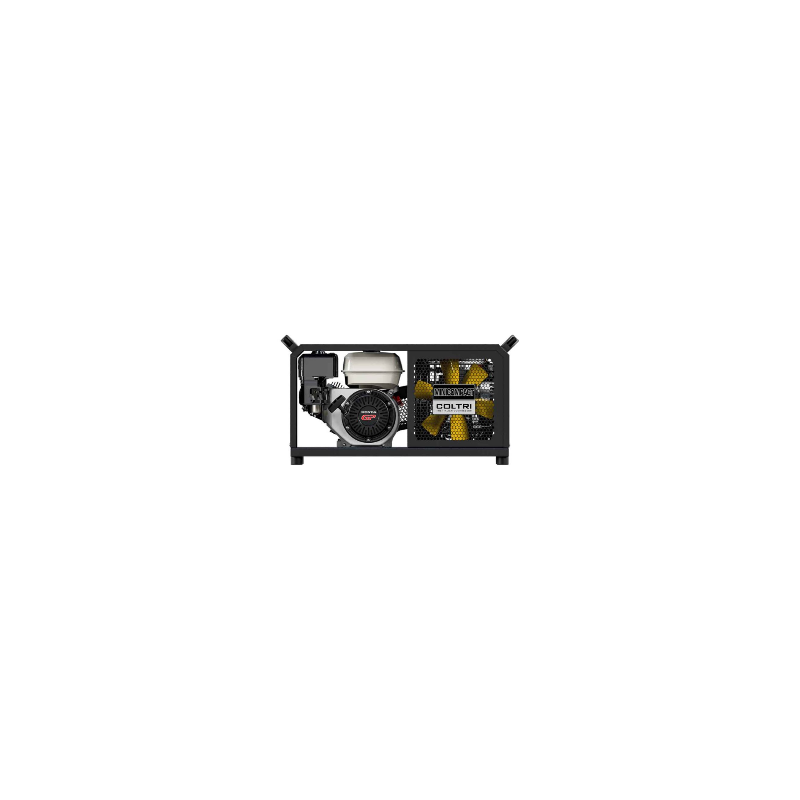

The Coltri Mini Compact 100 SH Compressor is a version designed to meet the high pressure air needs of diving, fire departments and small paintball facilities. It is equipped with a flexible inflation outlet, a drive motor, a robust compression block and a compact chassis with carrying handles. This version is suitable for users who do not have a three-phase power supply and can be optionally equipped with purges and an automatic shut-off.

The MCH6-V17 compressor block is built to last and has been tested in the most extreme conditions around the world. It is painted with a special paint that provides excellent heat dissipation and protection against external influences in salty atmospheres. The 316L stainless steel interstage cooling coils are sized to ensure optimum cooling and allow for longer filter cartridge life.

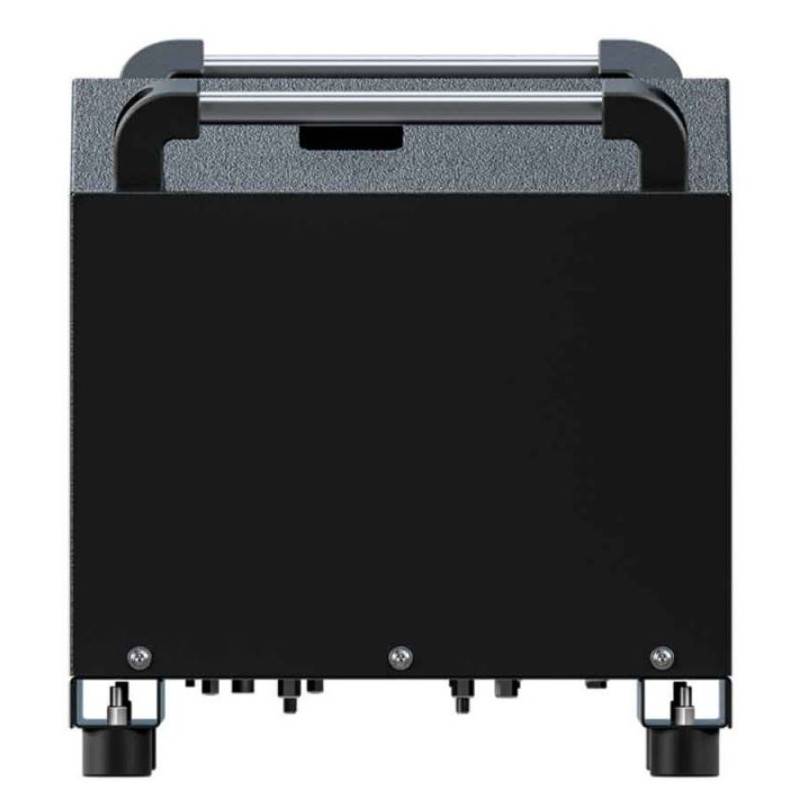

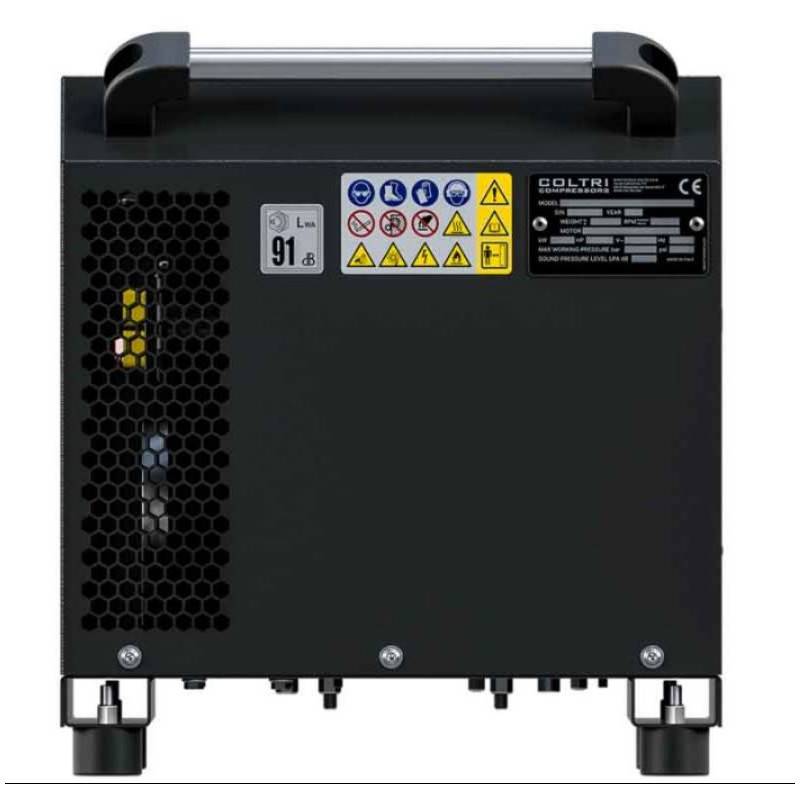

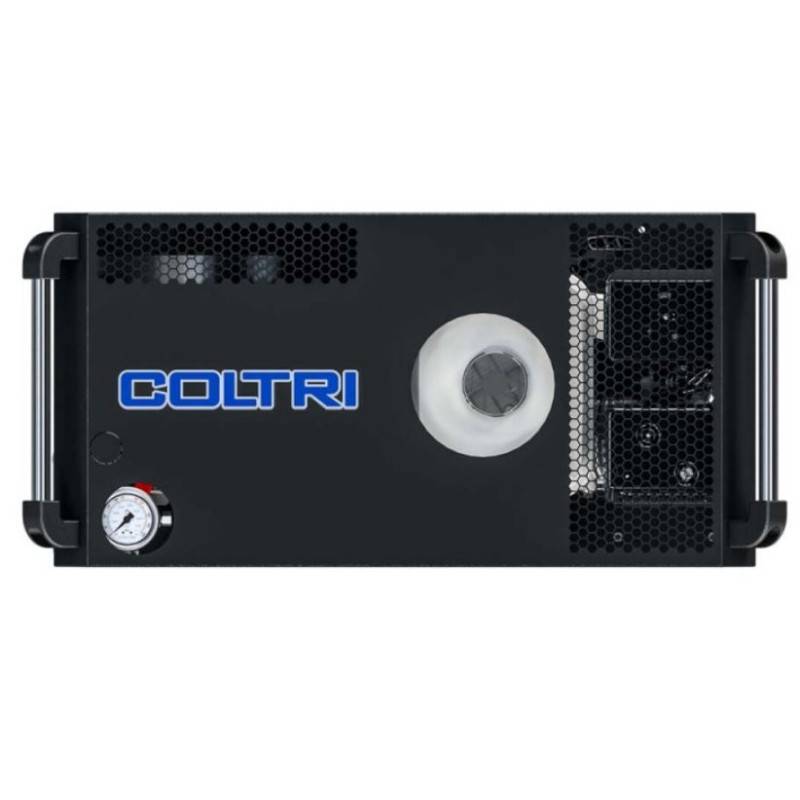

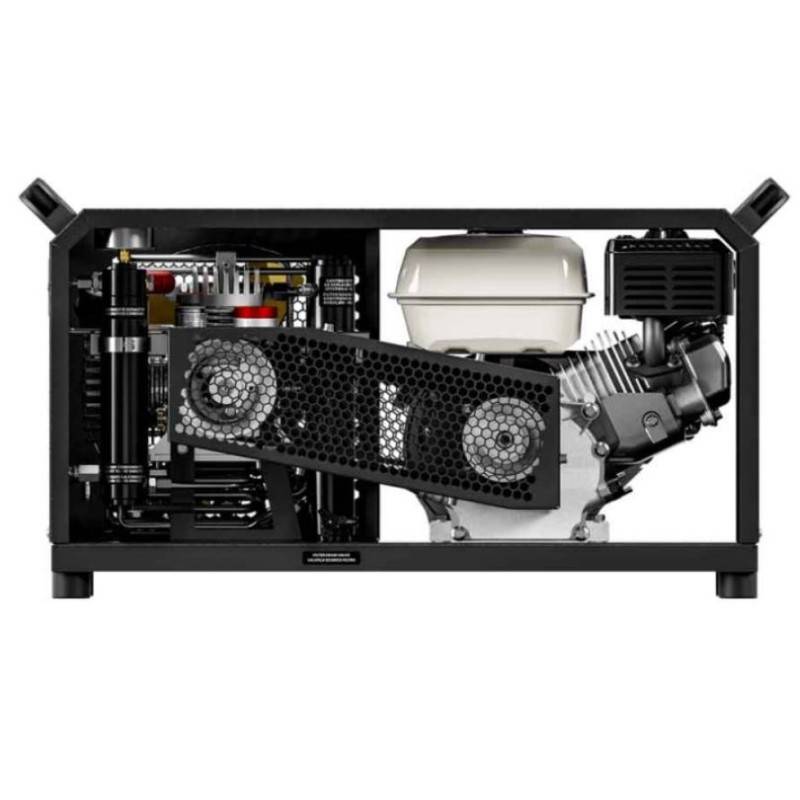

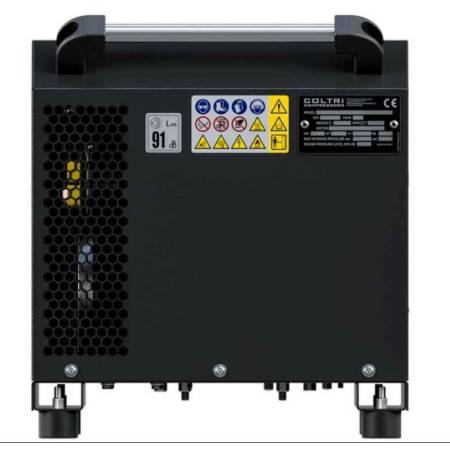

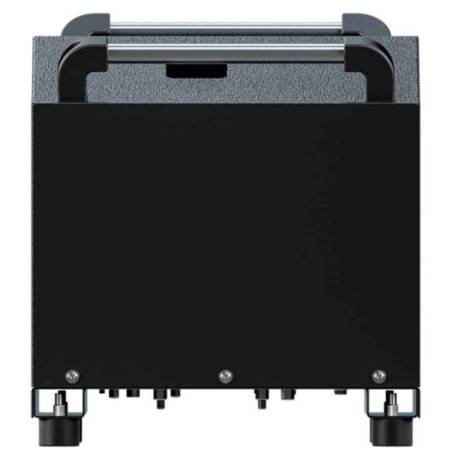

The welded chassis of the COMPACT range is fully enclosed to protect the machine from falling objects and to protect the operator. It integrates the Honda engine, the compressor block, the filtration system and a flexible outlet with a DIN or bracket inflation connection. The compressor is equipped with several filtration systems to ensure air quality in accordance with the requirements of EN 12021:2014.

The equipment also includes manual or automatic purges, safety valve or automatic shutdown, dual pressure with 2 flexible outlets (optional), water and oil separator, safety valves, hour meter (optional) and a flexible outlet on the front with DIN or bracket inflation connection.

• Technical data :

• COMPRESSION UNIT Mini Compact 100 SH Honda
• Reference SC000100
• FLOW RATE 100 l/min - 6 m³/h
• ENGINE HONDA GP200
• WORKING PRESSURE 232 - 330 bar / 3365 - 4786 psig
• POWER 4,3 Kw / 5.7 HP
• DIMENSIONS (W x H x D) 79,8 x 43,5 x 37 cm
• NET WEIGHT (APPROX.) 53 Kg
• Consumption 1,7 l/h
• POWER LEVEL / ACOUSTIC LpA 80,5 dB
