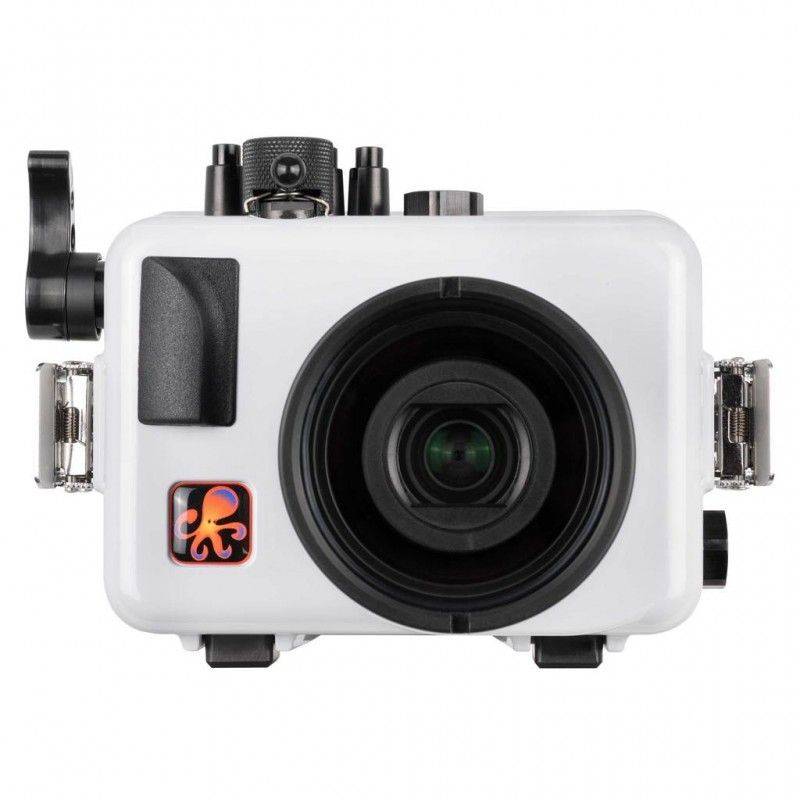

ZV-1 IKELITE housing for SONY ZV-1

Compact 60-meter waterproof housing for SONY ZV-1 camera

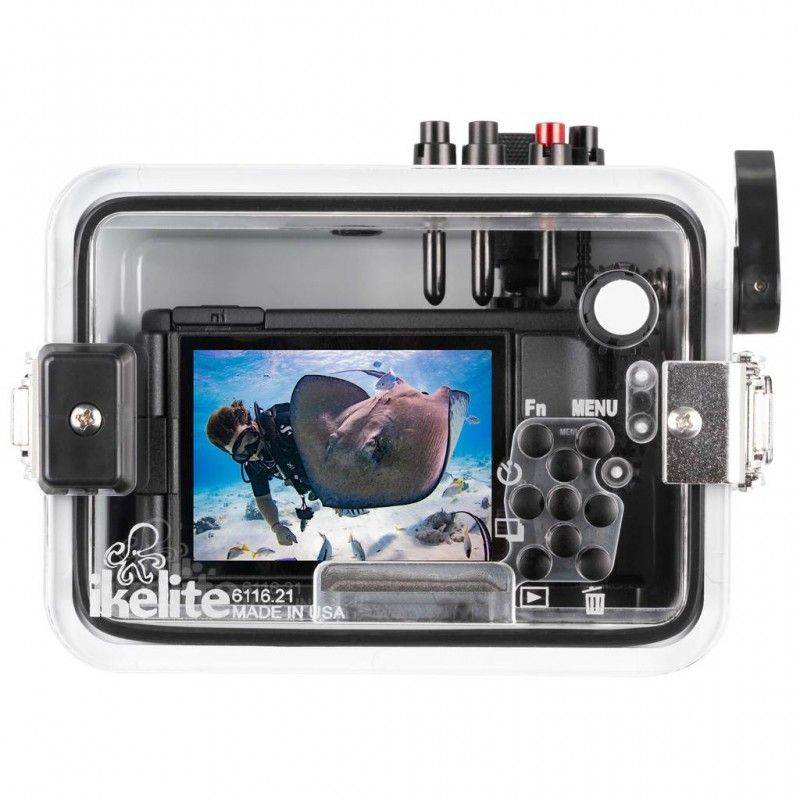

Newly designed housing in gray polycarbonate with transparent rear door for checking the correct position of the camera body and control levers inside the housing; highly resistant, it is tested and usable up to a depth of 60 meters. The specially formulated gray color reflects the sun's rays to keep the camera cooler over time. Compared with black or transparent housings, the gray color offers superior contrast for better viewing of the LCD screen.
The rear door gasket is always visible to ensure a tight seal when closing the door. For added safety! The rear door closes with 2 stainless steel safety latches.
The rear knobs are identified by unalterable laser engraving.
The 60-meter depth of use, combined with the brand's reputation, gives these housings a real safety margin for the user.
The many possible accessories make it perfectly upgradeable...
New ergonomic trigger control, spring-return zoom control, side plug for vacuum pump (sold as an option).
Optional external flash socket with B1A socket 46002 and C1 hot shoe 46071 for connecting an external flash such as the DS51, DS160, DS161 or other flash with sync socket.

Supplied with

• Double fiber optic holder
• 1cc grease dispenser
• Vinyl window protector
• A 1/2-20 plug for fitting a vacuum pump (sold as an option).
• English manual (French manual available in the "download" section of this product sheet)
• Ikelite USA warranty

Accessible controls:

• All camera controls are accessible with this housing, except the touch screen. Housing delivered bare, without camera

Technical specifications:

• Height: 12.7 Cm
• Width: 17.3 Cm
• Depth: 13.7 Cm
• Weight: C1 Kg
• Depth of use: 60 Mètres
• Material: ABS-PC
• Connectic Type External Flash: Fiber Optic
• Camera Brand: SONY
• Camera Body Size: Compact
• Housing Gasket: IKE 0109
• Humidity Sensor: NO
• Vacuum Pump: Optional: 1/2" Model
• Buoyancy: Slightly Negative

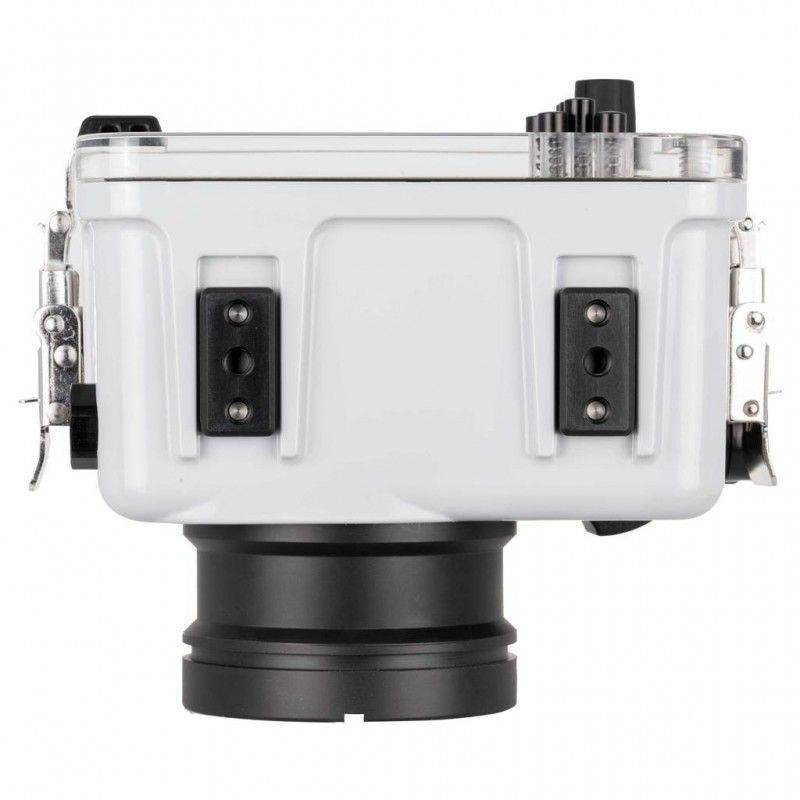

• Turntable Mounting Type: 2 x 1/4-20 (Kodak Pitch) Screw Mounting at 76mm Spacing
• Case Mount Accessory Bracket: NO
• Photo-Video Accessory Mounting Plate: OPTIONAL
• Porthole Diameter: 3.0 - Thread 67mm
