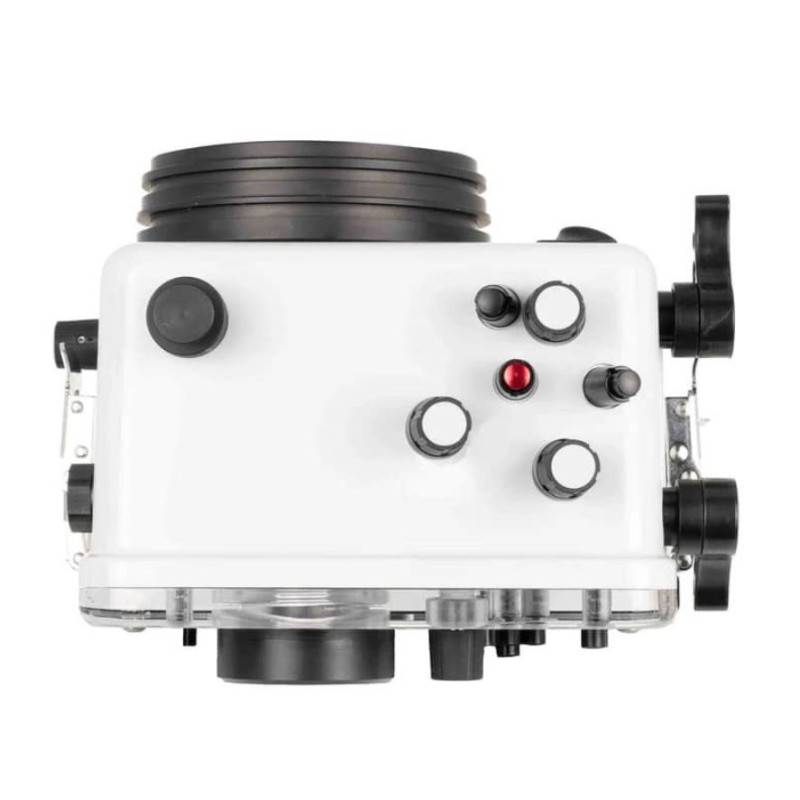

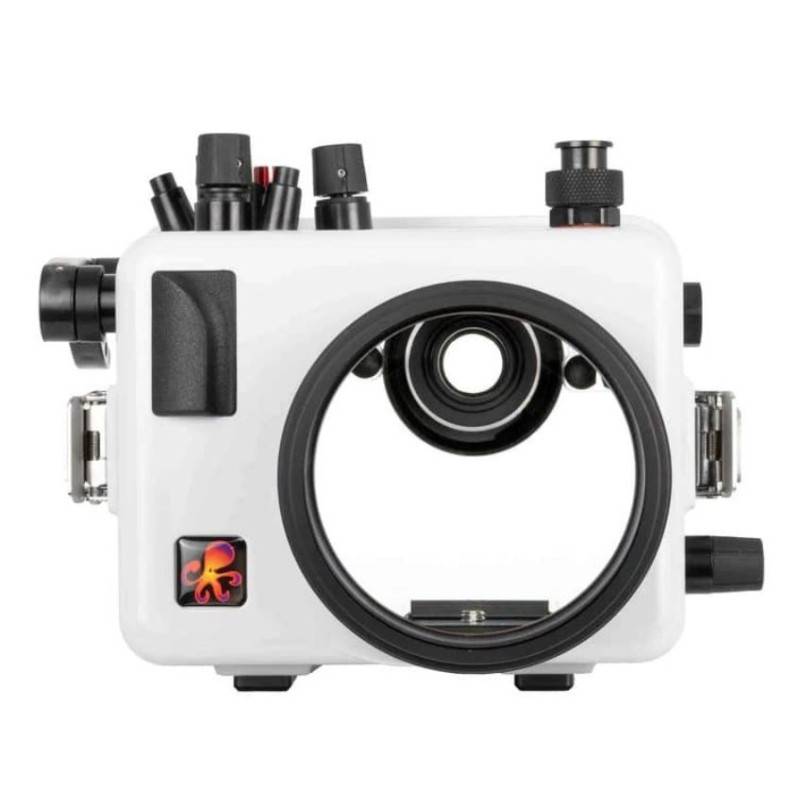

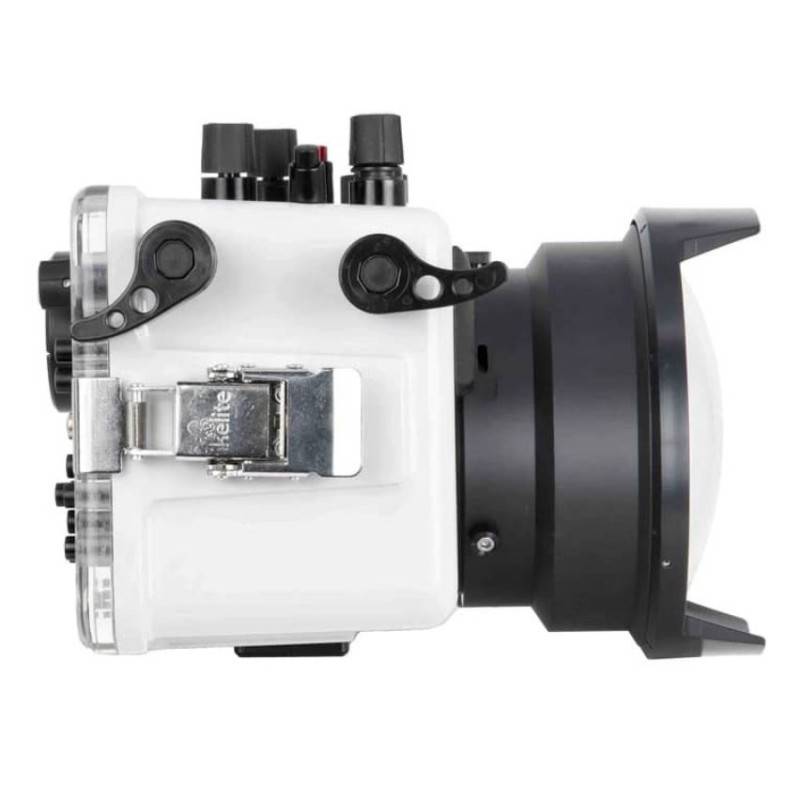

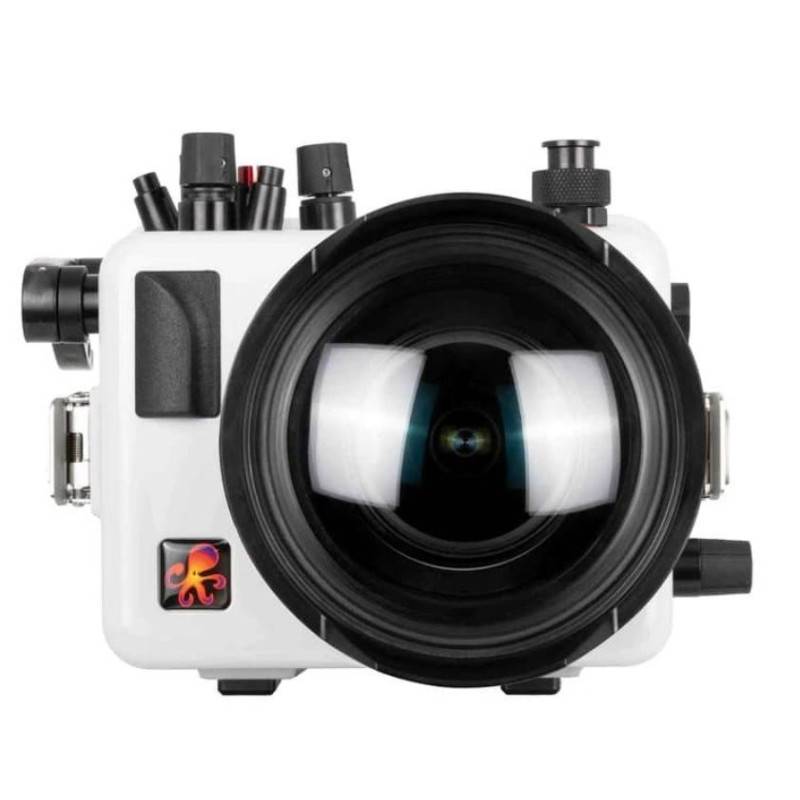

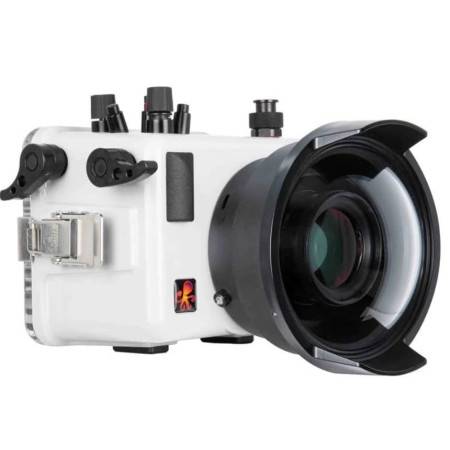

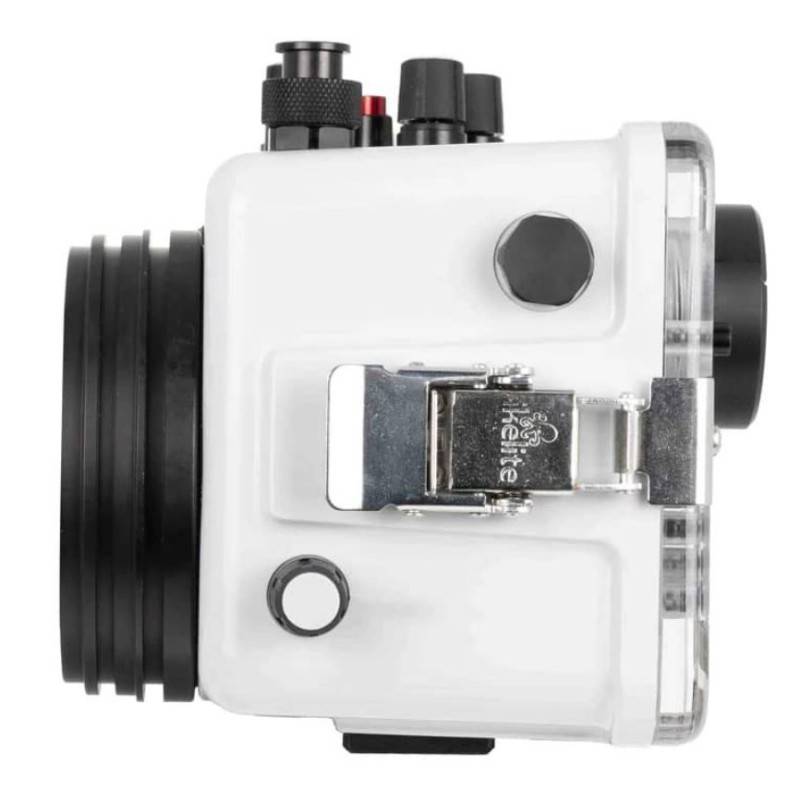

Ikelite EOS R7 DLM IKELITE housing for CANON EOS R7

Waterproof housing for CANON EOS R7 digital camera

New generation housing with a superb grip.

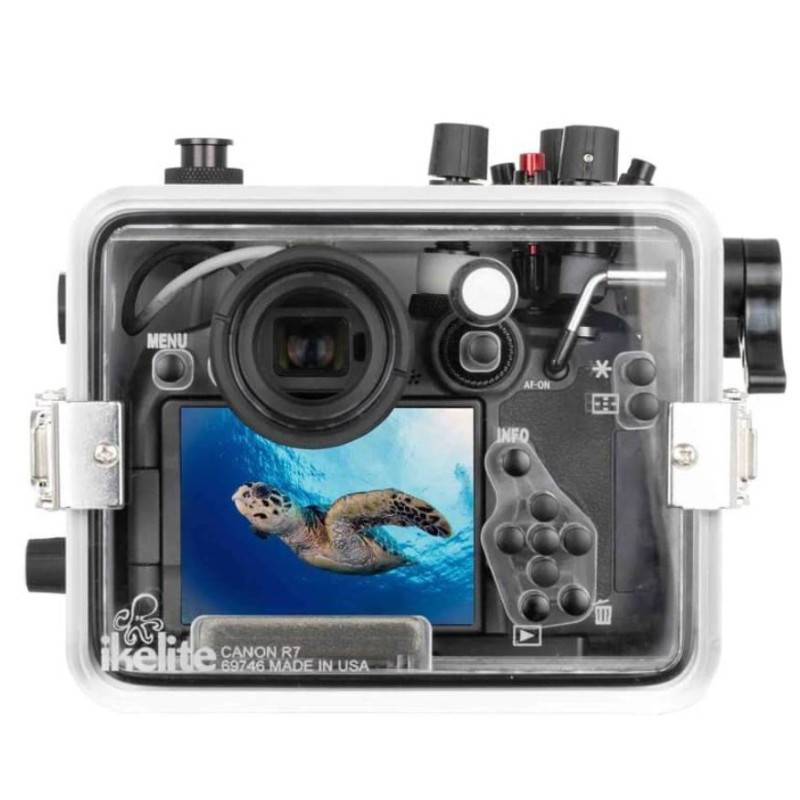

The transparent polycarbonate rear door allows a check of the correct positioning of the camera body and the control levers in the housing. The specially formulated grey colour reflects the sun's rays to provide better cooling of the camera over time, especially for cameras shooting in 4K. Compared to black or clear housings, the grey colour offers superior contrast for better viewing of the LCD screen.
The levers and buttons allow the use of almost all the camera's original controls.
A dual fibre optic bracket allows the flash from the camera's internal flash to be used to drive up to two external flashes simultaneously via fibre optic link.
Special electronics for TTL management with the addition of the DL5 DS Link TTL converter and the IKE 46075 flash socket

Delivered with :

• 1 Ikelite ICS-5 flash socket
• 1 set of spare button stop caps
• 1 grease bottle.
• 1 English manual (manual available in French in the "download" tab of this product sheet).
• Please note that this housing is delivered without a window!

Accessible controls :

All important camera controls are accessible from the housing except :

• diopter adjustment wheel
• Depth of field button
• Focus switch
• Multi controller (can be pressed)

Compatible viewports and domes:

This housing allows the use of a wide range of lenses and uses the DLM (DRY LOCK MICRO) type A port system

See the list of DLM/A ports for your lens

Compatible accessories :

All the accessories and spare parts for this housing can be found in the accessory tab of this product sheet. Do not hesitate to consult us for any advice on compatibility with your existing equipment.

Compatible external flashes:

The use of an external flash is recommended and improves colour rendition and exposure of subjects. The use of a flash with a fibre optic triggering system is not possible with this housing.

Technical data

• Height: 15.2 cm
• Width: 19.1 cm
• Depth: 15.0 cm
• Weight : 1.360 Kg
• Depth of Use: 60 meters
• Connectivity Type External Flash: Fiber Optic
• Camera Brand: CANON
• Camera Body Format: Hybrid
• Housing Seal : IKE 0110
• Humidity Sensor: OPTIONAL
• Vacuum Pump: Optional: 1/2" model
• Buoyancy: Depends on the weight of the lens used
• Mounting Type: 2 x 1/4-20 screws (not Kodak) spaced 76mm apart
• Accessory Bracket On Case:NO
• Photo-Video Accessory Mounting Plate: OPTIONAL
• Interchangeable Window System : DLM / DRY LOCK MICRO IKELITE

To take advantage of the TTL function of the Ikelite DS51, DS160 and DS161, DS230 flashes, a CANON DL5 DS LINK electronic TTL converter (ref. IKE 46075) must be purchased separately.

• Ikelite DS51 (TTL with optional DL5- DS Link 46075 converter and manual)
• Ikelite DS160, DS160 mark II (TTL with optional DL5- DS Link 46076 converter and manual)
• Ikelite DS161 (TTL with optional DL5- DS Link 46075 converter and Manual)
• Ikelite DS162 (TTL with optional DL5- DS Link 46075 converter and Manual)
• Ikelite DS230 (TTL with optional DL5- DS Link 46075 converter and Manual)
• Inon Z330
