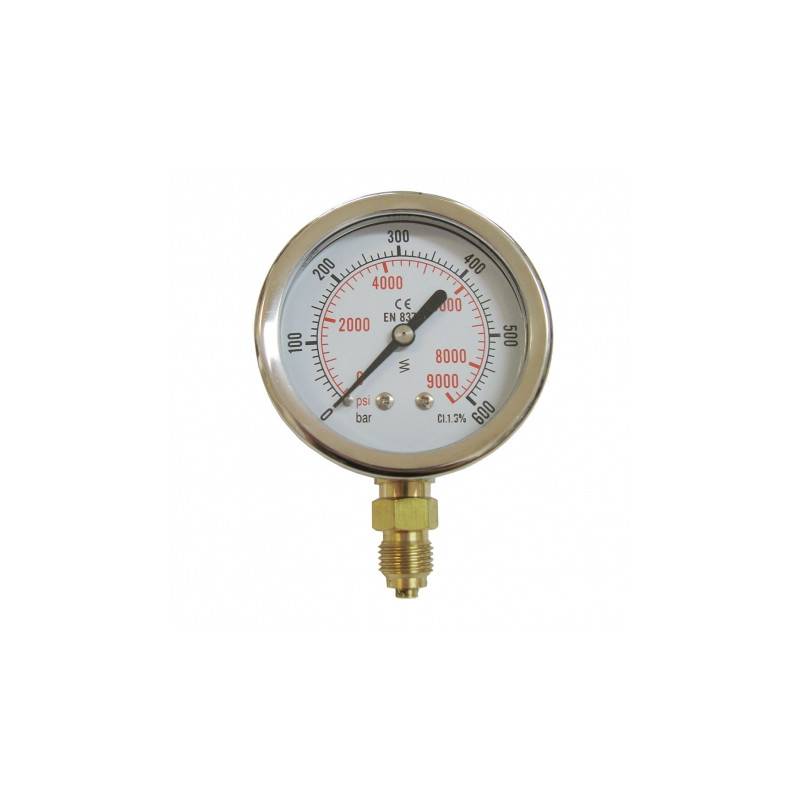

Vertical pressure gauge 0-600 bars D63mm

Stainless steel pressure gauge 0-600 bars D63mm vertical connection with glycerine

Ideal for buffer bottle racks, inflation ramps ...

Characteristics:

• Pressure range: 0-/600 bar
• Diameter: 63mm
• Air intake: vertical
• Accuracy class: 1.6
• Inlet connection: 1/4" BSP male
• Box material: stainless steel AISI 304
• Optional glycerine to dampen compressor vibration and mains water hammer

Council:

To choose the right pressure range for a pressure gauge, the pressure range must not exceed 2/3 of the working pressure of your network.

N.B.: Not all pressure gauges are on our website. We can supply pressure gauges in all diameters (40-50-63-100-150-200 mm), all pressures (2.5 to 1000 bars), oxygen compatible ...

Please contact us for any special request
