High pressure 1/4 turn valve 500bar service pressure
In stock
at your service, Monday to Friday 9 a.m. to 5 p.m.

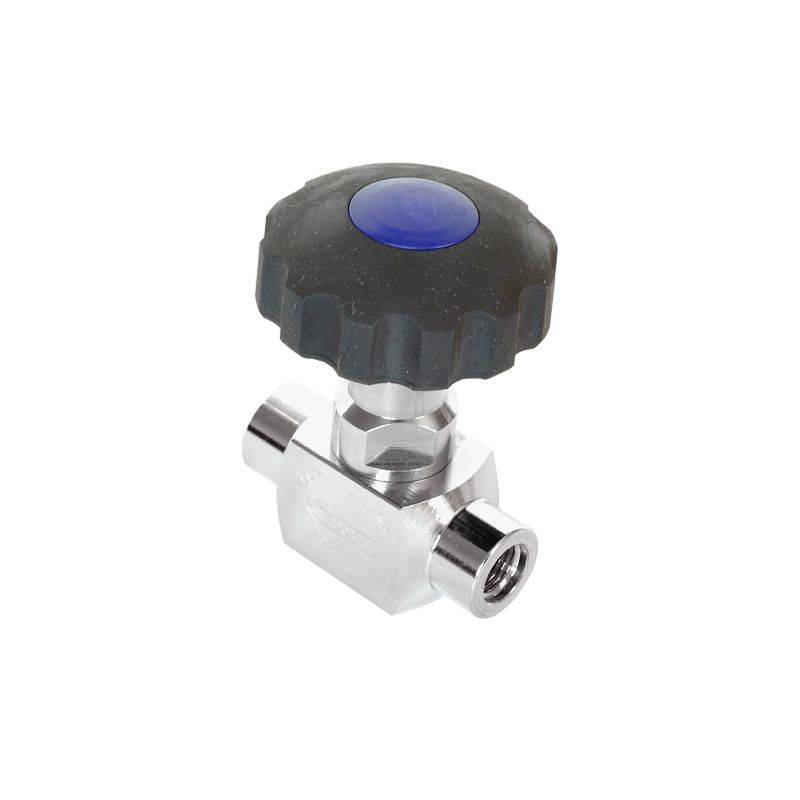

High pressure needle valve 414bar G1/4 BSP female
€175.00
Tax included
Price excluding tax / DOM-TOM
€145.83
TEK2F000
High pressure needle valve 414bar G1/4 BSP female
High pressure needle valve 414bar G1/4 BSP female
This valve is made of chrome plated brass with bronze-aluminum ball. The valve is ideal for use on compressor panels or for managing a rack of buffer cylinders.
The valve has a large elastomer handwheel for easy gripping.
Technical specifications of the needle valve :
- Working pressure: 414 bar (6000 psi)>
- Inlet and outlet connection: 1/4" BSP female
- Body material: chrome plated brass
- Ball material: bronze-aluminum
- Compatible with air and nitrox 40%.
Dimensions of the needle valve 414bar :
- Total length: 65 mm
- Height (with handle): 86 mm
- Width: 28 mm
