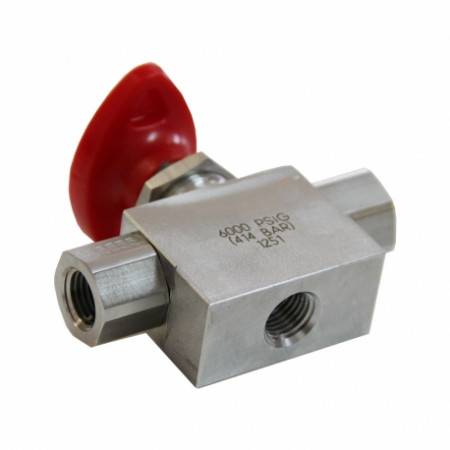

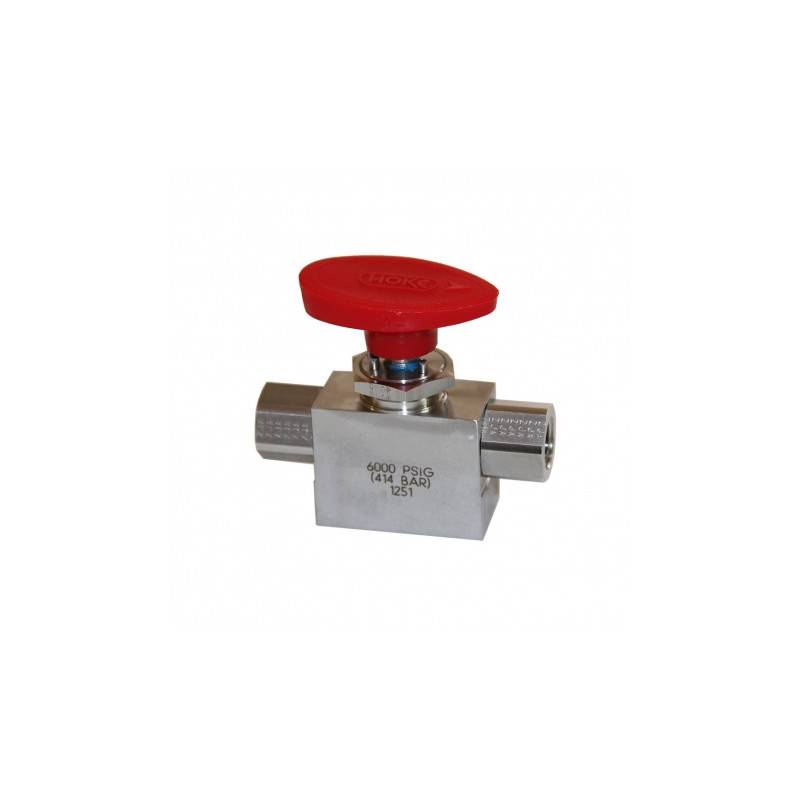

High Pressure Valve Stainless steel-316l-3-way-1-4-turn-414-bar

Stainless steel 1/4 turn 3-way ball valve industrial series compatible for air and 40% nitrox

This valve allows to divert the flow from one line to another.

Features & Benefits :

• Visual indication of flow direction: The handle indicates the selected position or the closed position (180° stroke). In perpendicular position, the valve is closed
• Bi-directional watertight seal: 2 TFE encapsulated seats combined with a polished bushel ensure optimal bi-directional watertightness.
• Elimination of fugitive emissions: the gasket ensures a perfect seal, with low operating torque, under vacuum or high pressure.
• Long life: the floating ball uses pressure to ensure a watertight seal, compensating for the effects of wear and temperature.
• Panel mounting

Technical data :

• Working pressure: 414 bars (6000 psi)
• Inlet and outlet connection: 1/4" NPT female
• Body material: stainless steel 316L
• Seat material: PTFE
• Trim material: Nylatron
• Material of the joints: Viton
• Passage diameter: 4.75 mm
• RESUME: 0.56
• Compatible with air and 40% nitrox
• Temperature of use: -18°C to +177°C
• Dimensions :
• Total length (with handle): 68 mm
• Body length: 75 mm
• Width: 22 mm
• Cable gland diameter: 22.6 mm
• Weight: 325 grams

Cautionary note

The so-called "hydraulic" valves (LEGRIS ...) which are designed for an operating pressure of 300 bar to 500 bar are not suitable for use with high-pressure compressed air.

These cheap steel valves ( 30 to 100 € ) quickly become hard to handle or leak quickly, because the passage of air oxidizes the steel ball and dries out the grease.
