DIN swivel tube reducer, 8 mm female, 6 mm male (800 bar)
In stock
at your service, Monday to Friday 9 a.m. to 5 p.m.
Male swivel union DIN 1/4'' Gas for 8 mm tube (800 bar)
€11.97
Tax included
Price excluding tax / DOM-TOM
€9.98
HP - EGE08SREDCF

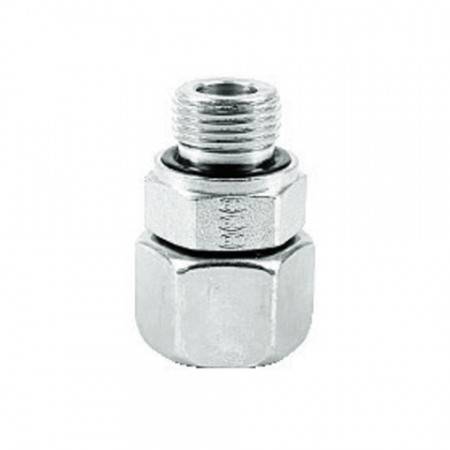

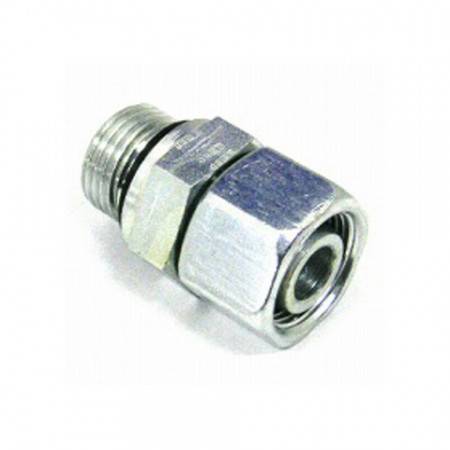

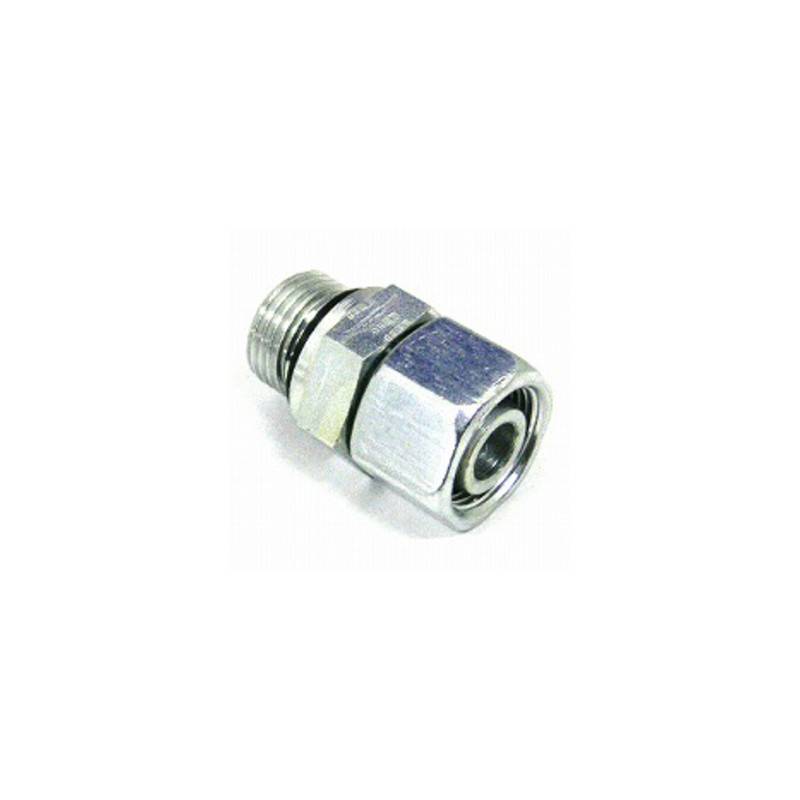

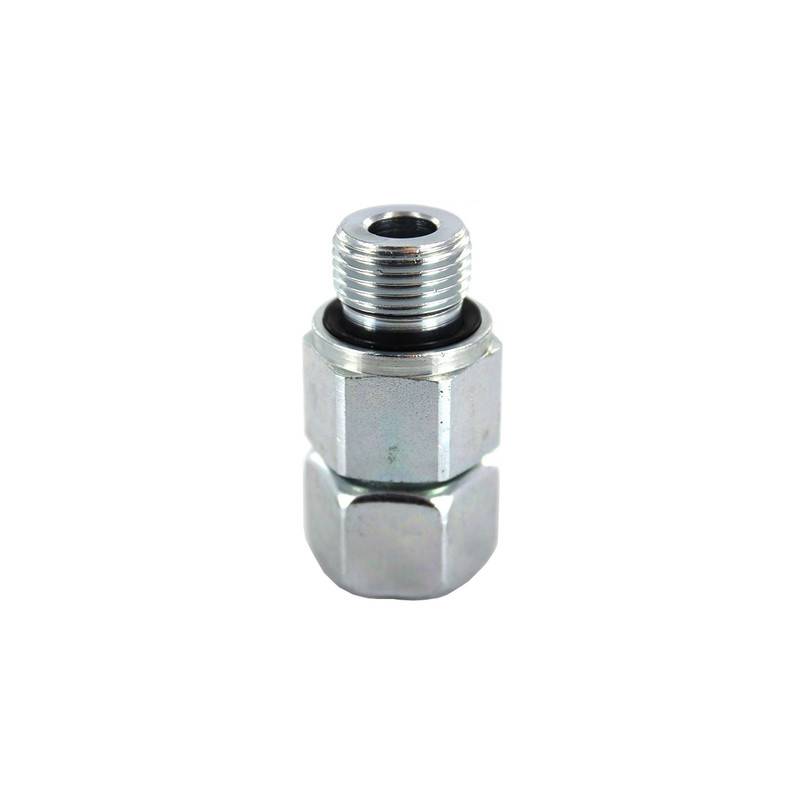

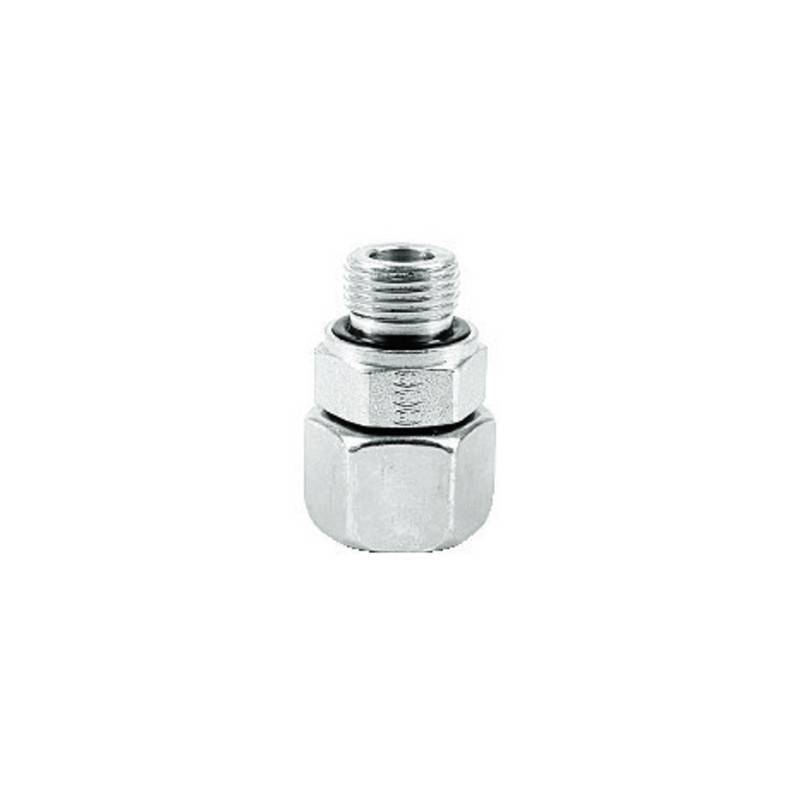

Male swivel union DIN 1/4'' Gas for 8 mm tube (800 bar)
DIN 1/4'' Gas swivel male union for 8 mm tube (800 bar)
Technical specifications:
- Male swivel union BSPP
- EO cone 24°.
- Male thread: 1/4'' Gas BSPP
- External tube diameter: 8 mm
- Max. operating pressure: 800 bar
- Material: Cr(VI)-free zinc-plated steel
- NBR O-ring
- Sealing ED gasket (ISO 1179)
