TODDY STYLE TS3 Kevlar Keprotec sidemount harness

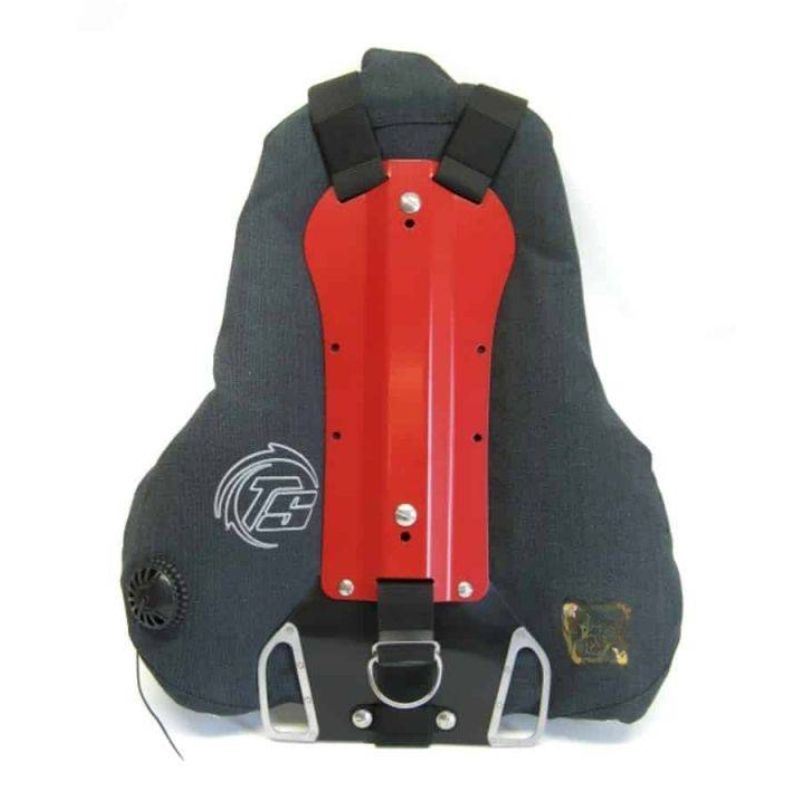

TODDY STYLE TS3 Sidemount harness in Kevlar Keprotec

The TODDY STYLE TS3 sidemount harness is an extraordinary concept of universality in the world of diving wings. It has been designed as a harness for use with a single backpack cylinder, or in its sidemount version with up to 2x 12L steel tanks.

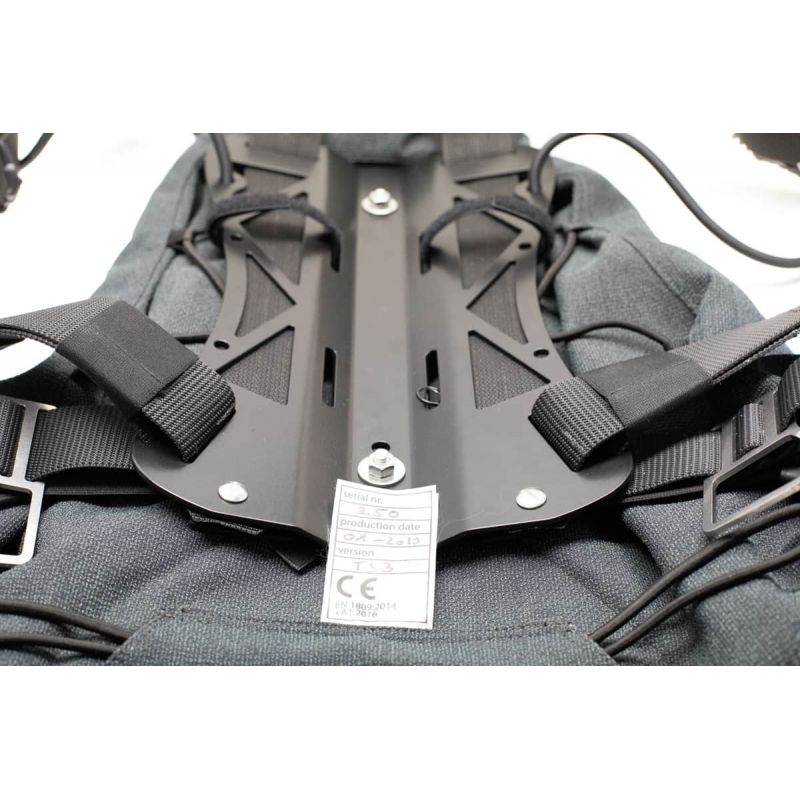

It is composed of an internal lightened back plate to attach the harness, a 13kg buoyancy and an external plate with an "STA" (Single Tank Adaptor) to attach a single tank. The STA can be flipped over for use as a sidemount. All this for a total ultralight weight of 3,6 kg.

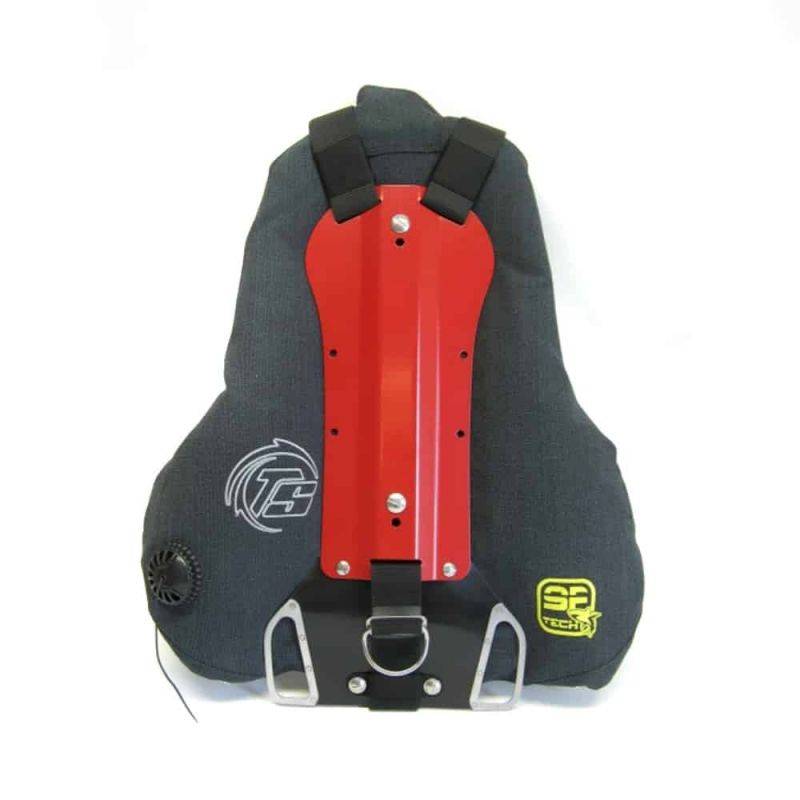

The color of the aluminum back plate can be chosen from black or red. A lightweight carbon fiber version is also available and saves almost 1kg on the total weight.

The TS3 version is the most advanced version of the Toddy-Style harness. The envelope is made of Kevlar Keprotec. The seams are tripled, which provides extreme resistance to wear.

For ballasting, a center weight (optional) can be added, and also back weights on the outside of the back plate with optional straps.

Technical characteristics of the Toddy-Style TS3 harness

• Shoulder and waist straps: polypropylene, 50mm wide, 3mm thick.
• Subcutaneous: polypropylene, 50mm wide, 3mm thick.
• Plates: AIMg3 aluminum, 3mm thick, water jet cut, durable electrostatic powder coating.
• Stainless steel parts: V4A quality.

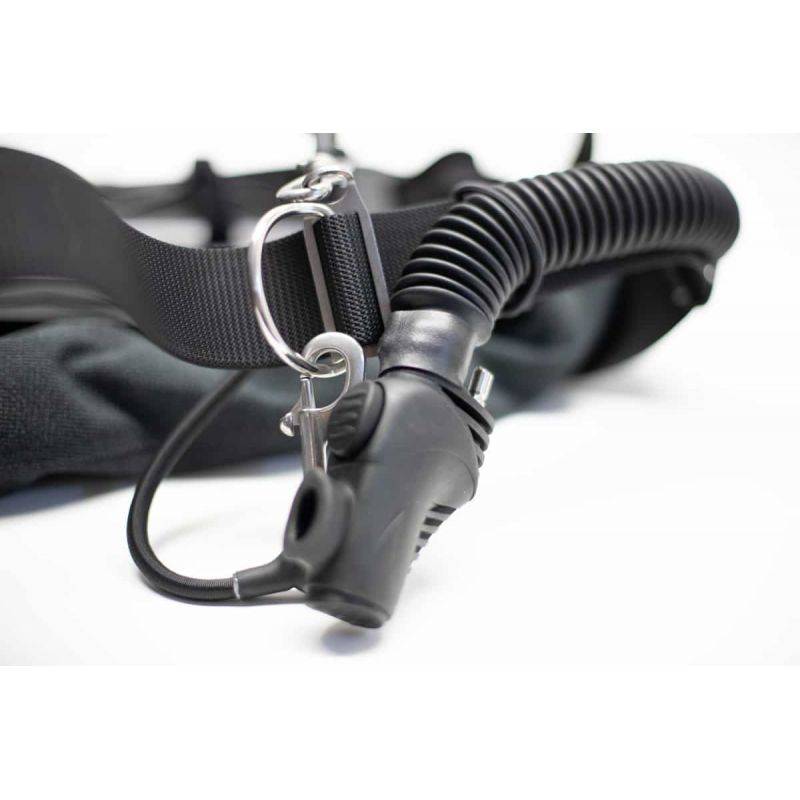

• Inflator - Corrugated hose: butylene rubber, length 320 mm.
• Anti-stretch cable of the corrugated hose: V4A stainless steel

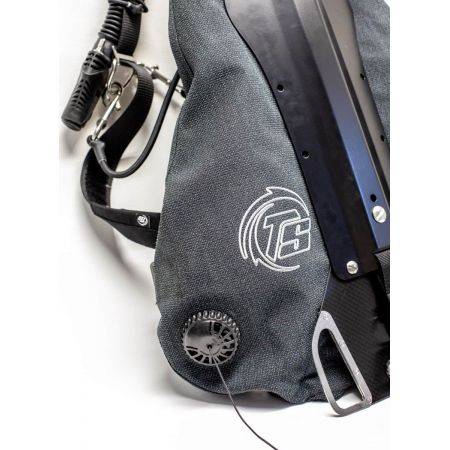

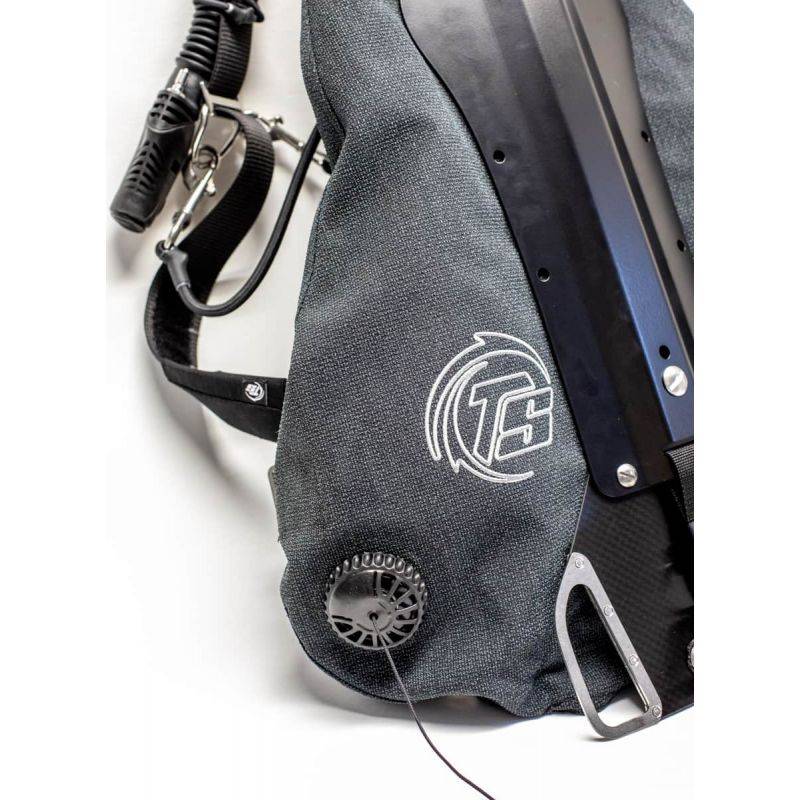

• Pressure relief valve: techno-polymer, glass-fiber reinforced stainless steel spring, working pressure 0,25 bar, silicone seal, polyester cord 2,5 mm.
• Bladder: nylon, PU coating.
• Outside protective bladder made from Kevlar Keprotec
• Lifting capacity: 130N
• Maximum recommended block size: 2x12L steel or 2x11.1L aluminum
• Weight: about 3.55kg
• Operating range: -1°C to +35°C
