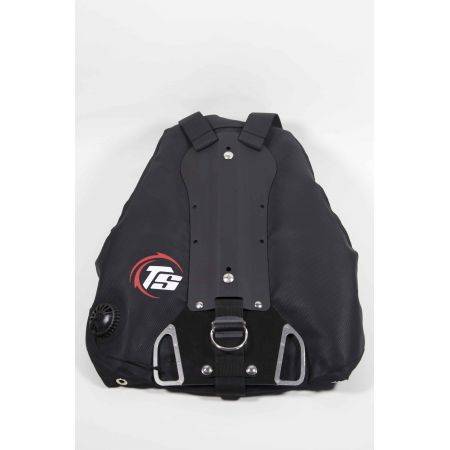

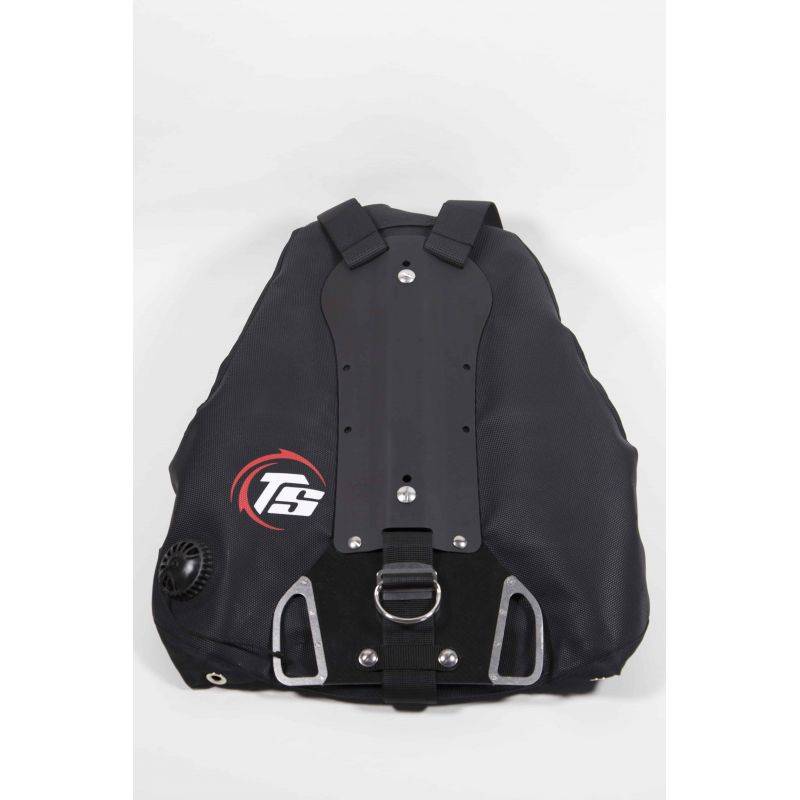

TODDY STYLE TS2 armoured PVC sidemount harness

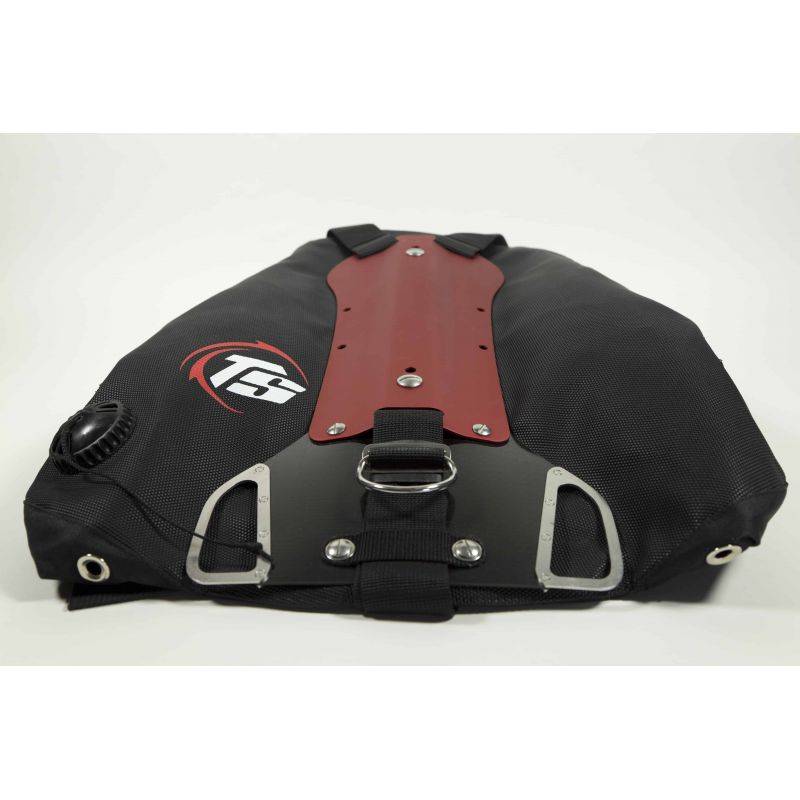

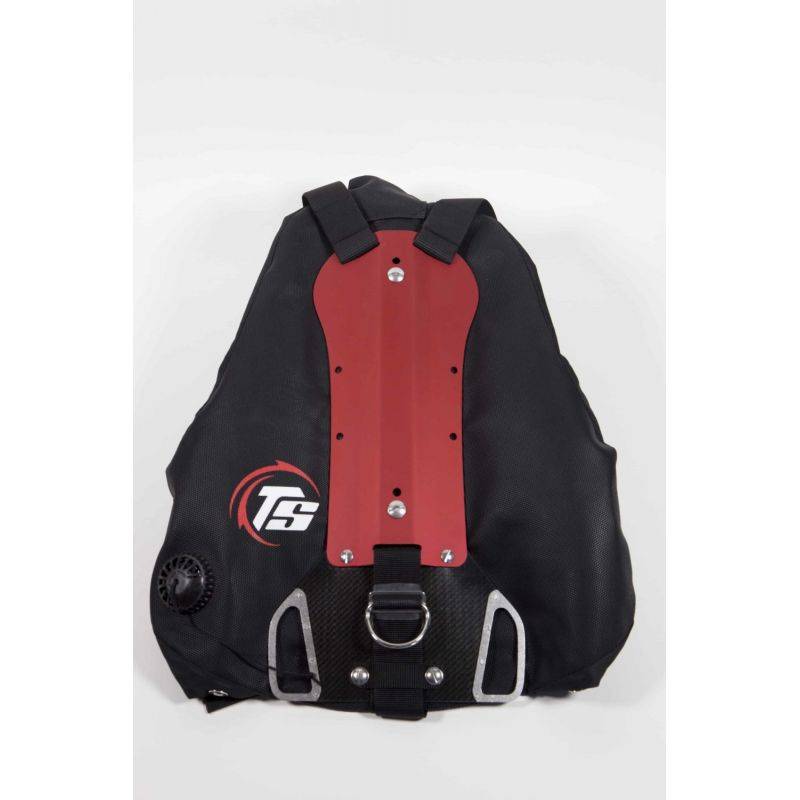

TODDY STYLE TS2 Sidemount harness in armoured PVC

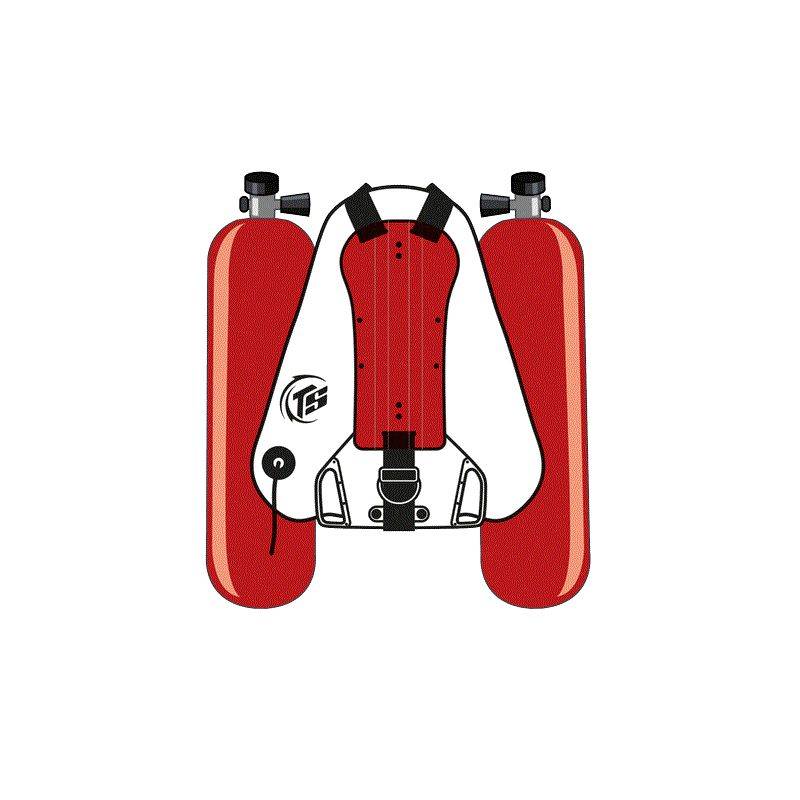

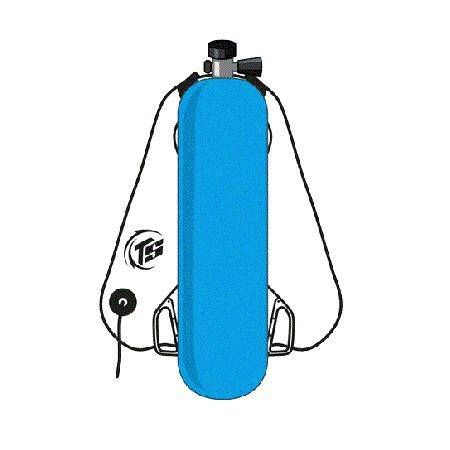

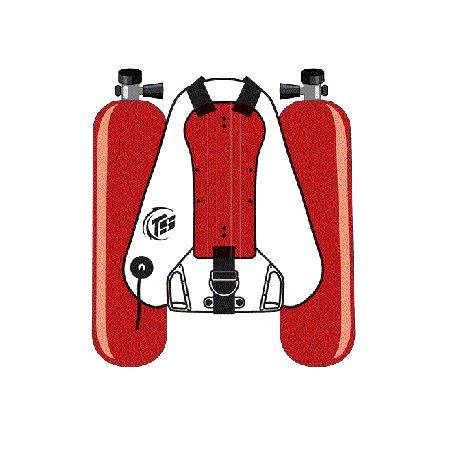

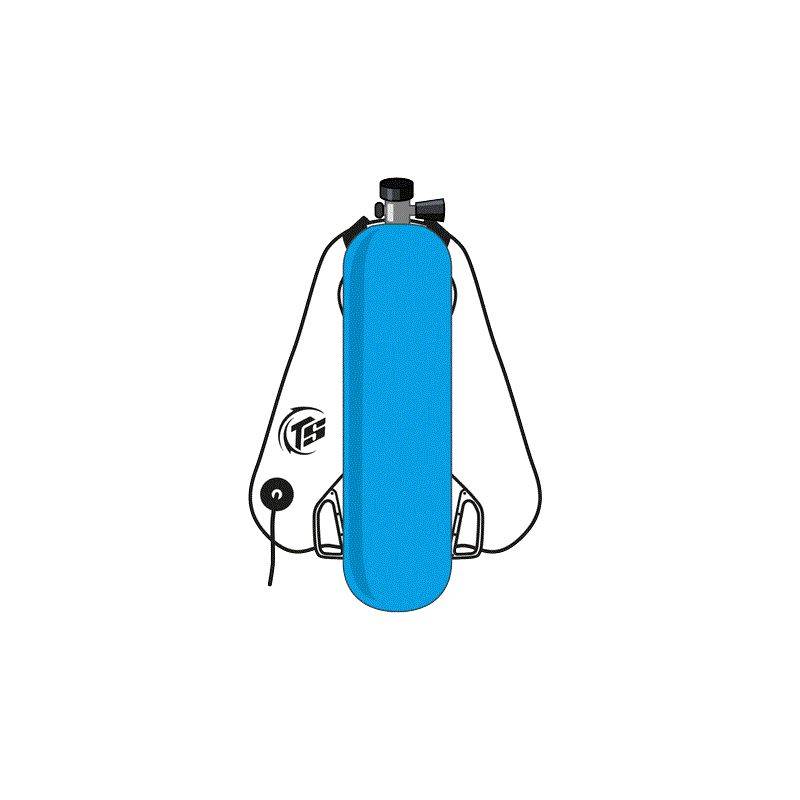

The TODDY STYLE TS2 sidemount harness is an extraordinary concept of universality in the world of diving wings. It has been designed as a harness for use with a single backpack cylinder, or in its sidemount version with up to 2x 12L steel tanks.

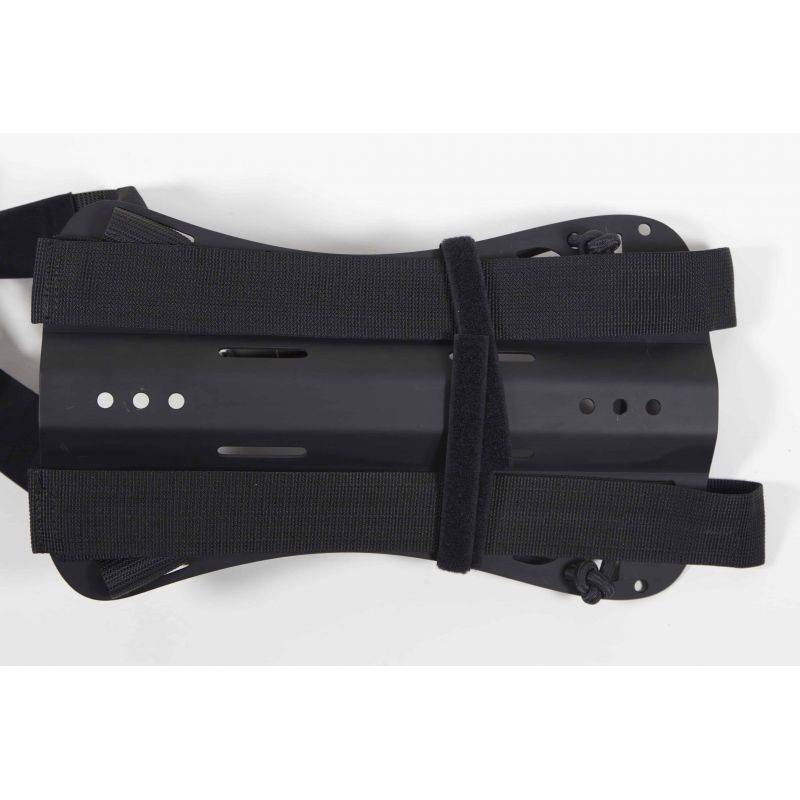

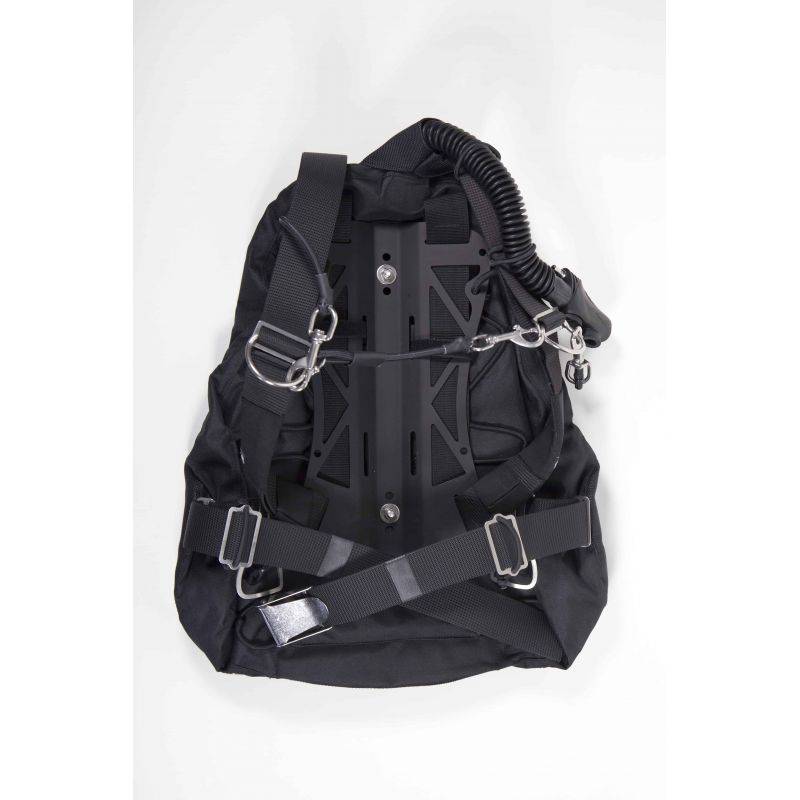

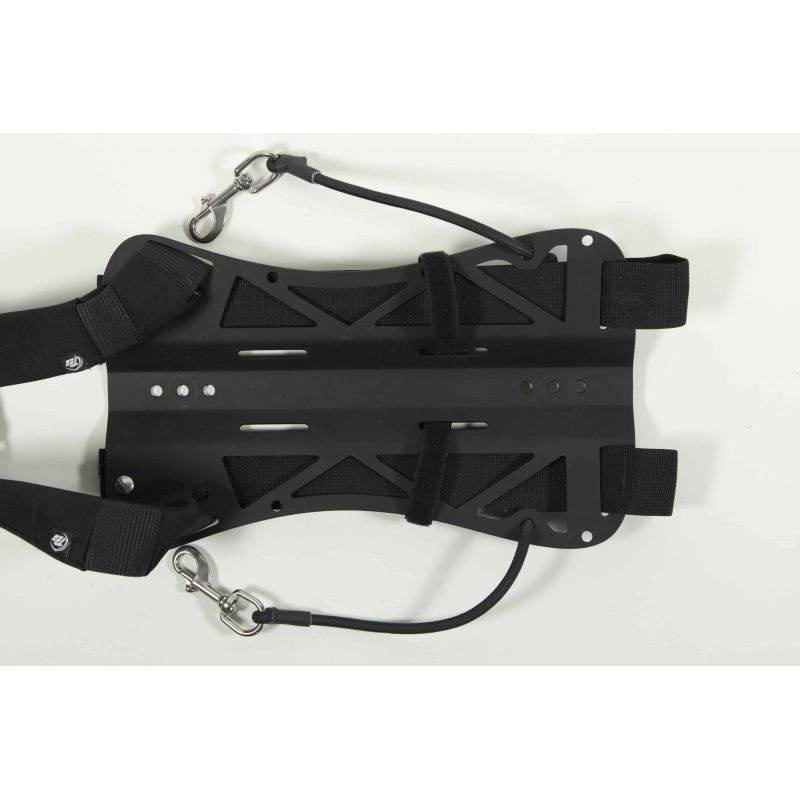

The design is simple: a lightweight internal back plate to attach the harness, 13kg buoyancy and an external plate with an "STA" to attach a single tank. All this for a total ultralight weight of 3.6kg.

The color of the aluminum back plate can be chosen from black or red. A lightweight carbon fiber version is also available and saves almost 1kg on the total weight.

The TS2 version of the Toddy-Style harness is made from armoured PVC for cave and wreck diving

For ballasting, a center weight (optional) can be added, and also back weights on the outside of the back plate with optional straps.

Technical characteristics of the Toddy-Style TS2 harness

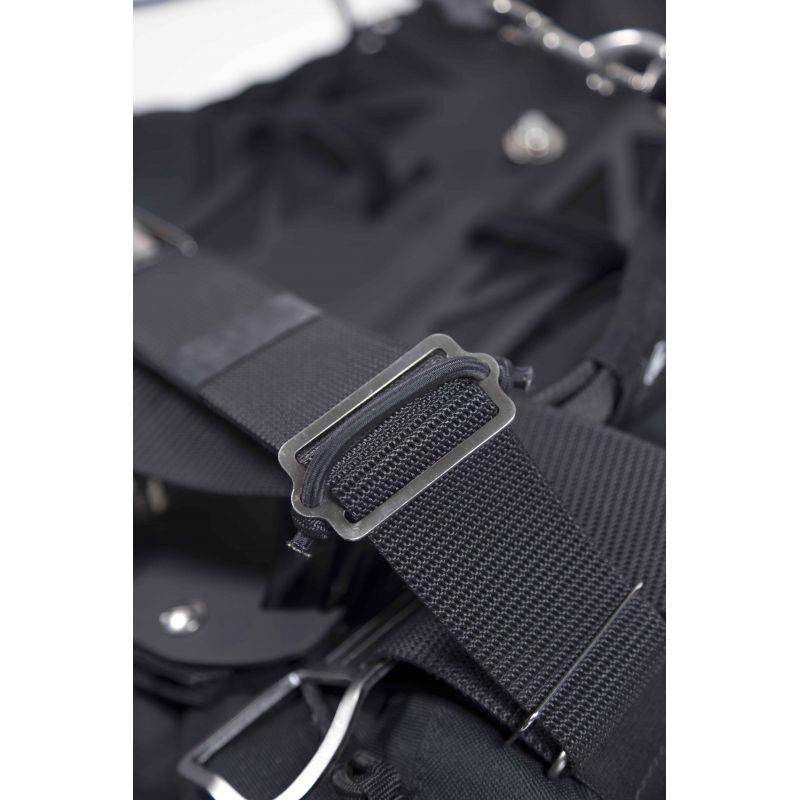

• Shoulder and waist straps: polypropylene, 50mm wide, 3mm thick.
• Subcutaneous: polypropylene, 50mm wide, 3mm thick.
• Plates: AIMg3 aluminum, 3mm thick, water jet cut, durable electrostatic powder coating.

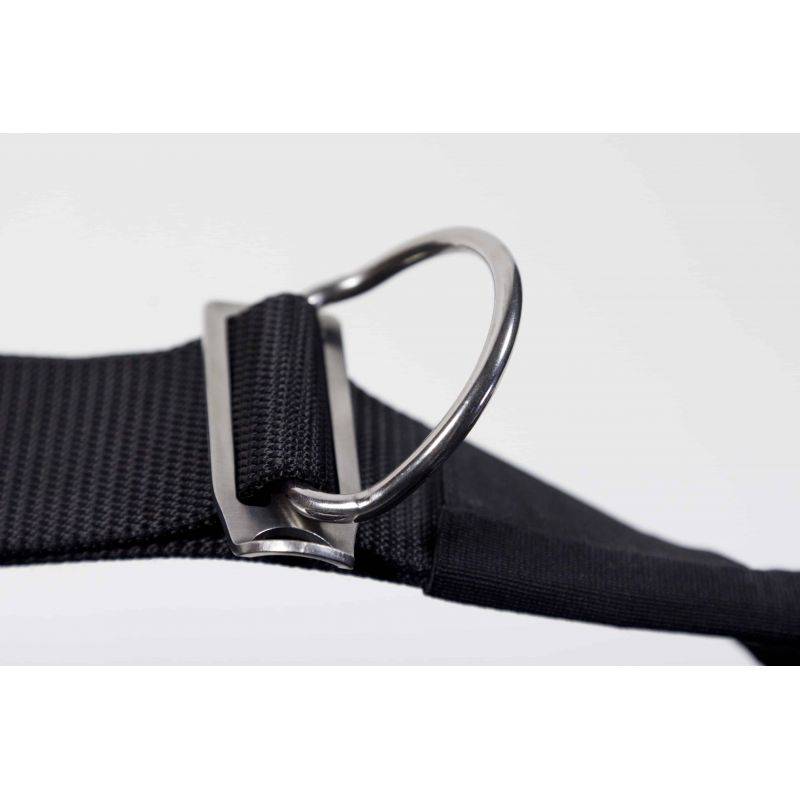

• Stainless steel parts: V4A quality.
• Inflator - Corrugated hose: butylene rubber, length 320 mm.
• Anti-stretch cable of the corrugated hose: V4A stainless steel
• Pressure relief valve: techno-polymer, glass-fiber reinforced stainless steel spring, working pressure 0,25 bar, silicone seal, polyester cord 2,5 mm.
• Bladder: nylon, PU coating.
• Protective cover TS2 in armoured PVC, PVC interior.
• Lifting capacity: 130N
• Maximum recommended block size: 2x12L steel or 2x11.1L aluminum
• Weight: about 3.55kg
• Operating range: -1°C to +35°C
